480W 3-phase DIN rail power supply 24V/20A
CHF 167.65 excl. VAT, plus shipping costs
Description
RACPRO1-T480 is a compact, highly reliable DIN rail power supply with three-phase AC input and 24V or 48V output. It is designed for demanding industrial applications and offers high overvoltage and reverse voltage immunity to protect against regenerative loads such as decelerating motors. With an output of up to 480W at temperatures from -40°C to +60°C and a short power boost of up to 150% for 5s, the device is suitable for highly inductive or capacitive loads. The design allows for tool-free installation and it is certified to international safety standards.
Technical data
- MADE IN EUROPE
- Slim design (52mm) with 25° push-in connections
- Quick, tool-free assembly and disassembly
- PFC >0.9 and Active inrush current limitation
- 2-phase AC operation 2x350V to 2x575V
- DC input range 430V to 815V/850V 10s
- Highest efficiency up to 95.3%
- Full power -40°C/+60°C
- Boost power 150%/5s
- Thermal performance bonus 120%/45°C
- Highest life expectancy 80,000h/40°C
- DC-OK signal
- Extended overvoltage protection 2.5kV/6kV
- Reduced power consumption in idle mode 1.9W to 3W
- 3-year guarantee
Additional information
| DIN rail power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet RACPRO1-T480 | PDF(1.4 MB) |
|---|---|
| Installation Guide RACPRO1 | PDF(1.27 MB) |
Downloads
| 3D data RACPRO1-T480 | Zip file (4.27 MB) |
|---|
Accessories
-
DBUF20-24
20A buffer module for 24V systemsCHF 84.2045 Available immediately -
DUPS20
Battery controller for UPS systems 24V / 20ACHF 24.502 Available immediately -
RACPRO1-RD40
40A redundancy module for 12V / 24V / 48V systemsCHF 91.70Available to order -
FF12A230UN
Filterfan 230 Vac size 12: 150 x 150 mm B flow intakeCHF 55.7038 Available immediately -
RACPRO1-4SP/24V/5A
4 channel E-Fuse, 5A, 24VdcCHF 90.802 Available immediately
Similar products
-
RACPRO1-T240/24
240W 3-phase DIN rail power supply 24V/10ACHF 122.953 Available immediately -

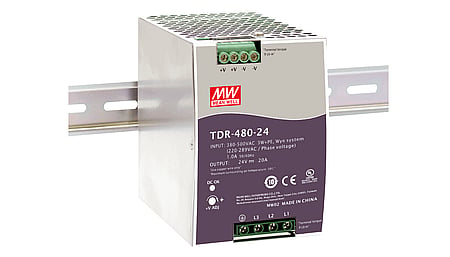

TDR-480-24
