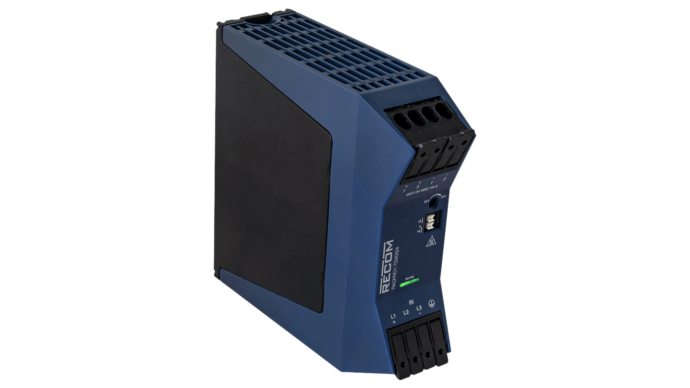

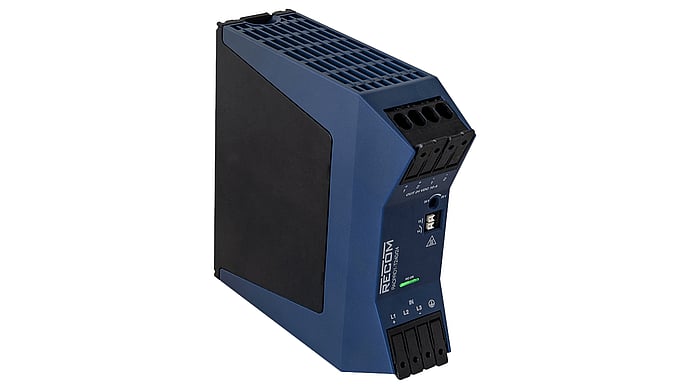

240W 3-phase DIN rail power supply 24V/10A

Name: RACPRO1-T240/24 - 240W DIN-rail power supply, 24V/10A, 3-phase - RECOM
Brand: Recom
SKU: RACPRO1-T240/24
Price: 122.95 CHF
Availability: InStock

CHF 122.95 excl. VAT, plus shipping costs

Item no: RACPRO1-T240/24

Stock level:3 Available immediately

Packaging ex works: 1 piece

10+ ~~CHF 122.95~~ CHF 114.55 (6%save)

25+ ~~CHF 114.55~~ CHF 108.60 (11%save)

Recommend:

Delivery time request Print PDF

Description

RACPRO1-T240 is a compact, three-phase power supply (24V/240W) for DIN rail mounting, developed for demanding applications in industrial automation. With dimensions of 135 x 125 mm and a width of only 43 mm, it offers high overvoltage resistance (up to 6 kVAC) and reverse voltage resistance (>35V), which makes it suitable for regenerative loads such as motors and inductors. It delivers up to 240W at -40°C to +60°C with convection cooling, a thermal power bonus of up to 288W at 45°C and a power boost of 150% for 5 seconds. The design with 25° connectors enables easy installation and replacement. It complies with safety standards IEC/EN/UL 62368-1 and 61010-1 as well as electromagnetic standards EN 61000-6-4 (Class B) and EN 61000-6-2.

Technical data

MADE IN EUROPE
Slim design (43mm) with 25° push-in connections
Quick, tool-free assembly and disassembly
Active inrush current limitation
2-phase AC operation 2x350V to 2x575V
DC input range 430V to 815V/850V 10s
Highest efficiency up to 94.1%
Full power -40°C/+60°C
Boost power 150%/5s
Thermal performance bonus 120%/45°C
Highest life expectancy 80,000h/40°C
DC-OK signal
Reduced power consumption in idle mode 0.8W to 1.1W
3-year guarantee

Additional information

DIN rail power supplies

Output voltage (Vdc)	24
Power (W)	240
Output current (A)	10
Input voltage range (Vac)	320 to 575 (3-phase)
Connection	Lever-operated push-in
Certificates	EN61010-1, EN61010-2-201, EN62368-1, IEC61010-2-201, IEC61010-1, IEC62368-1, UL61010-1, UL61010-2-201, UL62368-1
Further functions	Parallel switchable, peak power
Overload behavior	Hiccup mode
Status signals	DC OK signal
Product series	RACPRO
Width (mm)	43
Height (mm)	135
Depth (mm)	140.4
Manufacturer	Recom

LEDs

Manufacturer's warranty	3 years
Efficiency typ.	94%
Peak power (W)	360

Data sheets

Data sheet RACPRO1-T240	PDF(946.58 KB)
Installation Guide RACPRO1	PDF(1.27 MB)
