3-channel inrush current limiter (DIN rail version), 48A
CHF 95.60 excl. VAT, plus shipping costs
Description

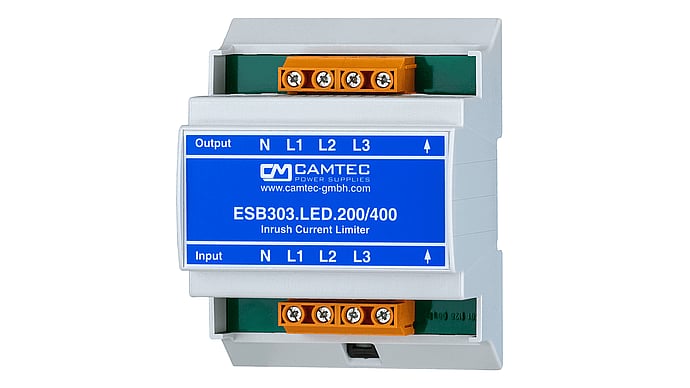

The CAMTEC ESB303.LED.200/400 inrush current limiter can be used either with 3 channels in the 230Vac mains or in the 3-phase 400Vac mains. The ESBs offer maximum availability and fault-free operation on capacitive loads and are optimized for use in LED applications, complex automation applications and in the machine industry. Retrofitting existing systems (retrofit) is possible without any problems. An external power supply is not required.
Technical data
- 3×200-240Vac or 1x 400Vac
- Capacitive load 6000µF per phase
- Integrated overtemperature protection
- Inrush current limit 48A
- Continuous current 16A
- Made in Germany
- Dimensions 87.8x110x62mm
- Manufacturer Camtec
Additional information
| Inrush current limiter | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
| More | ||||||||
|
||||||||
Data sheets
| Data sheet ESB303 | PDF(756.58 KB) |
|---|
