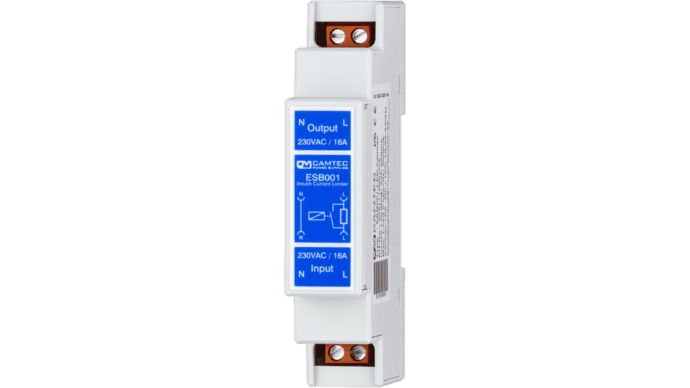

Inrush current limiter (DIN rail version), 43A, ultra-compact
CHF 65.70 excl. VAT, plus shipping costs
Description
The Camtec ESB001 series were developed as cost-effective and professional inrush current limiters. The ESBs offer maximum availability and fault-free operation on capacitive loads and are optimized for use in LED applications, complex automation systems and mechanical engineering.
and in mechanical engineering. An external power supply is not required.
Thanks to their very compact dimensions, the ESB001s save space in the control cabinet, facilitate retrofitting in existing systems or enable use where space is at a premium.
Not a simple NTC solution! ESB001 makes it possible to reduce cabling sections and install fast circuit breakers. 100% protection against circuit breaker tripping or thermal overload of relay and circuit breaker contacts.
Technical data
- Peak / effective current limitation
- 184-265Vac, 16A permanent
- DIN TS35mm standard top-hat rail
- Wall mounting (universal housing)
- Spring clamps 0.5 ... 4mm
- Integrated bypass relay
- Capacitive loads 5000uF
- Built-in temperature monitoring
- IP20 UL94V-O Housing DIN43880
- for DINNDE0603 installation box
- Dimensions 17.9(=1TE) x 89.5 x 62.8mm
- Manufacturer Camtec
Additional information
| Inrush current limiter | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
| More | ||||||||
|
||||||||
Data sheets
| Data sheet ESB001 | PDF(378.27 KB) |
|---|
