DIN rail power supplies
TDR 480
mean well

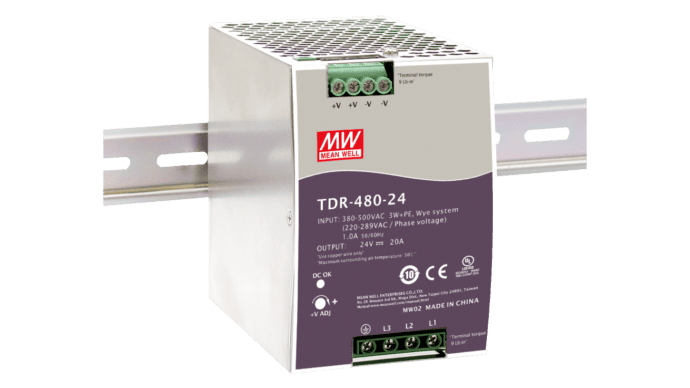

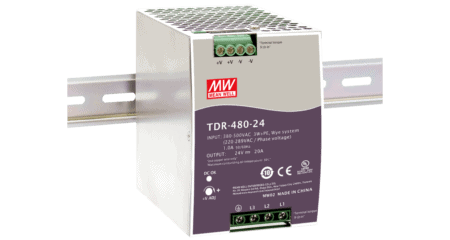

480W DIN rail power supply 24V/20A, 3-phase

CHF 104.90 excl. VAT, plus shipping costs

Item no: TDR-480-24
Stock level:4 Available immediately
Packaging ex works: 8 piece
5+ CHF 104.90 CHF 99.90 (4%save)
10+ CHF 99.90 CHF 95.50 (8%save)
20+ CHF 95.50 CHF 92.80 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

TDR-480-24 is a compact DIN rail power supply for 3-phase operation. The metal housing with a width of 85.5mm saves space in the control cabinet. With the high efficiency of 93%, the power loss is minimized to keep the heating in the control cabinet as low as possible. The power supply unit is ideal for industrial control systems, semiconductor production or automation applications.

Technical data

  • 3 phase input voltage 340 to 550Vac (2 phase operation possible)
  • Suitable for mounting on TS-35/7.5/15 top-hat rails
  • High efficiency 93%
  • Operating temperature range from -30°C to +70°C
  • LED display for DC OK
  • Dimensions 85.5 x 125.2 x 128.5mm (W x H x D)

Additional information

DIN rail power supplies
Output voltage (Vdc)

24

Power (W)

480

Output current (A)

20

Input voltage range (Vac)

340 to 550 (3-phase)

Connection

Screw terminal

Certificates

IEC62368-1, UL508, UL62368-1

Overload behavior

Constant current limiting

Product series

TDR

Width (mm)

85.5

Height (mm)

125.2

Depth (mm)

128.5

Manufacturer

MEAN WELL
LEDs
More
Manufacturer's warranty

3 years

Efficiency typ.

92%

Data sheets

Data sheet TDR-480 PDF(366.8 KB)
Test Report TDR-480-24 PDF(389.22 KB)
User Manual TDR PDF(847.4 KB)
Carbon Footprint declaration TDR-480 PDF(74.05 KB)

Downloads

3D data TDR-480 Zip file (1.05 MB)
