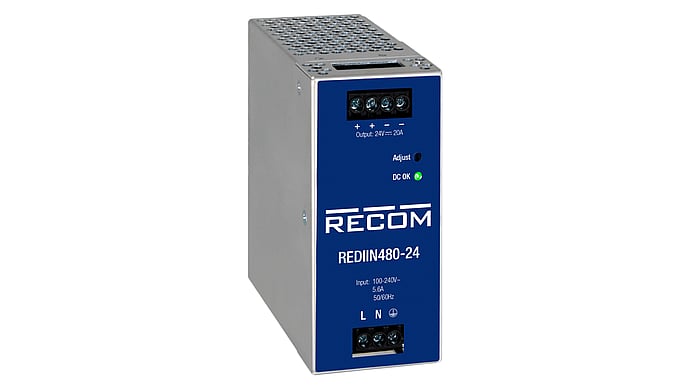

480W DIN rail power supply 24V/20A
Instead of CHF 100.70CHF 83.10 excl. VAT, plus shipping costs
Description
The REDIIN480 DIN rail power supply has been specially developed for price-conscious users to provide important functions for industrial applications without compromising on quality and reliability. With an output power of 480W and an extremely compact size of only 123.6 x 56.0 x 116.8mm, the REDIIN480 series offers two adjustable output variants from 24V to 48V. The convection-cooled devices operate reliably in a temperature range from -30°C to +50°C (230VAC). They can be operated in constant current mode and are therefore ideal for inductive and capacitive loads. They are also certified in accordance with the safety standards IEC/EN/UL 62368-1, IEC/EN/UL61010-1 and IEC/EN/UL/CSA61010-2-201. The electromagnetic emissions comply with the industry standard EN 61000-6-4 Class B and the standard EN 61000-6-2 for immunity.
Technical data
- Universal input voltage range 90-264VAC
- Built-in constant current circuit
- Two output variants 24V and 48V available
- Adjustable output voltage range ±10%
- High power density with an efficiency of up to 93.5%
- Temperature range -30°C to +70°C
- Cold start capability -40°C
- Reduced power consumption in idle mode <0,75W
- Width only 40mm
- Low weight of only 870g
- 3-year guarantee
Additional information
| DIN rail power supplies | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet REDIIN480 | PDF(1 MB) |
|---|---|
| Installation Guide REDIIN480 | PDF(1.58 MB) |
Downloads
| 3D data REDIIN480 | Zip file (2.83 MB) |
|---|
Accessories
-
DBUF20-24
20A buffer module for 24V systemsCHF 84.2045 Available immediately -
DRDN20-24
20A redundancy module for 24V systemsCHF 20.602 Available immediately -
ICL-16R
Inrush current limiter (DIN rail version), 23ACHF 42.2096 Available immediately -
FF12A230UN
Filterfan 230 Vac size 12: 150 x 150 mm B flow intakeCHF 55.7038 Available immediately -
DUPS20
Battery controller for UPS systems 24V / 20ACHF 24.502 Available immediately
