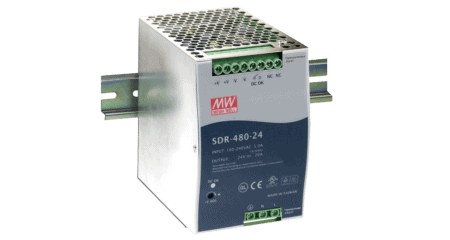

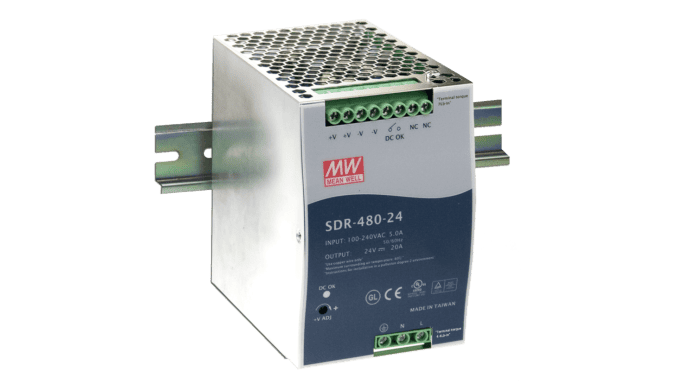

480W DIN rail power supply 24V/20A, single phase

Name: SDR-480-24 - MEAN WELL - 480W DIN rail power supply 24V/20A, single phase
Brand: MEAN WELL
SKU: SDR-480-24
Price: 124.00 CHF
Availability: InStock

CHF 124.00 excl. VAT, plus shipping costs

Item no: SDR-480-24

Stock level:82 Available immediately

Packaging ex works: 8 piece

5+ ~~CHF 124.00~~ CHF 118.00 (4%save)

10+ ~~CHF 118.00~~ CHF 112.80 (9%save)

20+ ~~CHF 112.80~~ CHF 109.60 (11%save)

Recommend:

Delivery time request Print PDF

Description

SDR-480-24 is a slim 480W DIN rail power supply with metal housing and 150% peak power function.

Technical data

Built-in active PFC
Suitable for mounting on TS-35/7.5/15 top-hat rails
150% peak load
Operating temperature range from -25°C to +70°C
LED display for DC OK
DC OK relay contact
Dimensions 85.5 x 125.2 x 128.2mm (W x H x D)

Additional information

DIN rail power supplies

Output voltage (Vdc)	24
Power (W)	480
Output current (A)	20
Input voltage range (Vac)	85 to 264
Connection	Screw terminal
Certificates	EN62368-1, IEC62368-1, UL508, EAC TP TC 004, AS/NZS62368-1
Further functions	Peak Power
Overload behavior	Constant current limiting
Status signals	DC OK relay contact
Product series	SDR
Width (mm)	85
Height (mm)	125.2
Depth (mm)	128.5
Manufacturer	MEAN WELL

LEDs

Manufacturer's warranty	3 years
Efficiency typ.	94%
Peak power (W)	720

Data sheets

Data sheet SDR-480	PDF(172.83 KB)
Test Report SDR-480-24	PDF(119.4 KB)
User Manual SDR	PDF(988.71 KB)
Carbon Footprint declaration SDR-480	PDF(74.03 KB)
