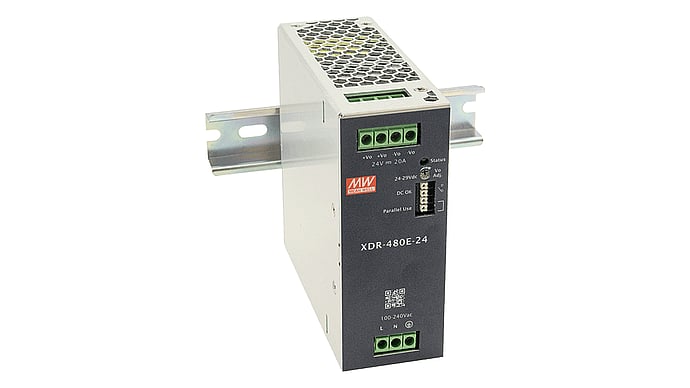

480W DIN rail power supply 24V/20A
CHF 83.50 excl. VAT, plus shipping costs
Description
XDR-480E is an ultra-slim 480 Watt DIN rail power supply unit. With a width of only 48mm, it saves a lot of space in the control cabinet. The high efficiency of up to 96% and the low standby power consumption of <1.2 watts save energy and reduce waste heat.
With the built-in current sharing function, the power supply units can be operated in parallel up to a total output of 1920W.
Technical data
- Worldwide certifications for various areas of application
- Protected against short circuit, overload, overvoltage and overtemperature
- Parallel switchable up to 1920 watts (3+1)
- Temperature range from -40° to +70°C (derating from 50°C)
- Operating altitude up to 5000 M (OVCIII up to 2000M)
Additional information
| DIN rail power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet XDR-480E | PDF(859.14 KB) |
|---|---|
| DVT Test Report XDR-480E-24 | PDF(764.5 KB) |
| Installation Manual XDR-E | PDF(1.08 MB) |
| Carbon Footprint Declaration XDR-480E | PDF(73.69 KB) |
Downloads
| 3D data XDR-480E | Zip file (7.73 MB) |
|---|
