LED sale
LED module ø134mm / TW / 3000K & 4000K / CRI >90 / 144LED
High quality LED module Made in EU
CHF 15.00 excl. VAT, plus shipping costs
Item no:
SO134-C144-93040-UK
Stock level:2 Available immediately
Description

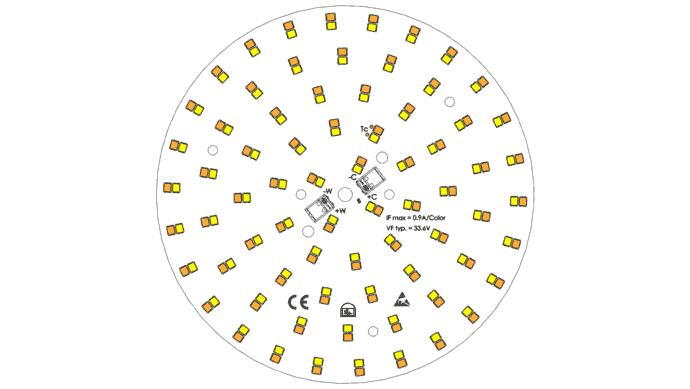

- Round Tunable White LED module with adjustable color temperature from 3000K to 4000K (= one print for 3000K or 4000K)
- This module can also be operated as a standard 3000K or 4000K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- Suitable hole pattern for the MODULED MEGA 13420 heat sink
Additional information
| Maintenance aids | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| SO134-C144-93040-UK | PDF(558.29 KB) |
|---|
Downloads
| LED module calculation 3.2 | Zip file (105.78 KB) |
|---|
