25W LED driver 300mA to 1050mA/9V...54V, Matter, Independent
CHF 57.80 excl. VAT, plus shipping costs
Description

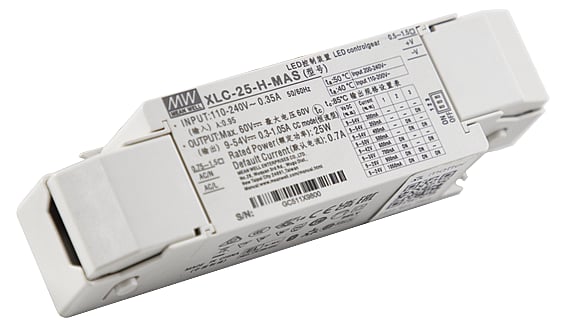

XLC-25-H-MAS is a flexible LED driver with constant current output for the direct operation of LED lighting applications. Can be dimmed wirelessly via Matter. Version with strain relief for use outside the luminaire.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- Dimmable with Matter via thread
- Dimming is flicker-free with current control, no PWM at the output
Control
- Wireless with Matter via Thread
Dimming range
The dimming range is 0.5% to 100% of the selected output current.
Technical data
- Plastic housing
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Specification XLC-25-MA | PDF(176.79 KB) |
|---|---|
| Installation instructions LED driver Mean Well | PDF(1.2 MB) |
| Operating instructions XLC MA | PDF(1.6 MB) |
Downloads
| 3D Step File XLC-25_XLC-40 | Zip file (560.81 KB) |
|---|
Accessories
-
SR-9101-GW-MATTER
HomeKit Matter Zigbee smart home control unitCHF 119.6026 Available immediately
