LED dimmer

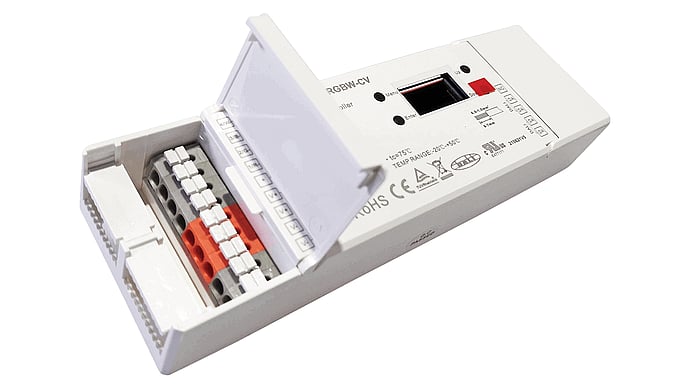

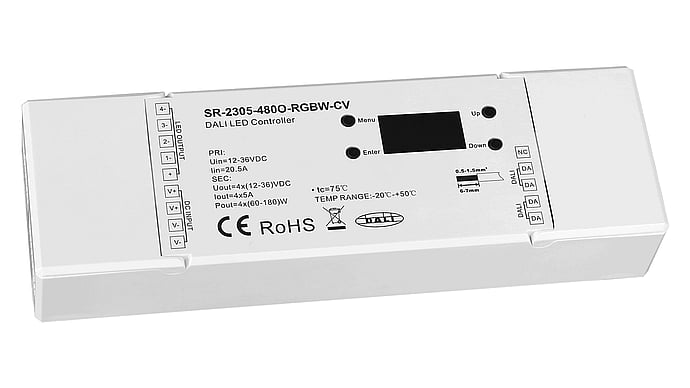

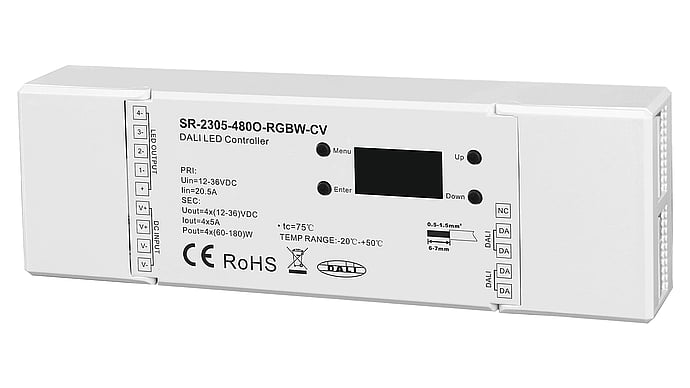

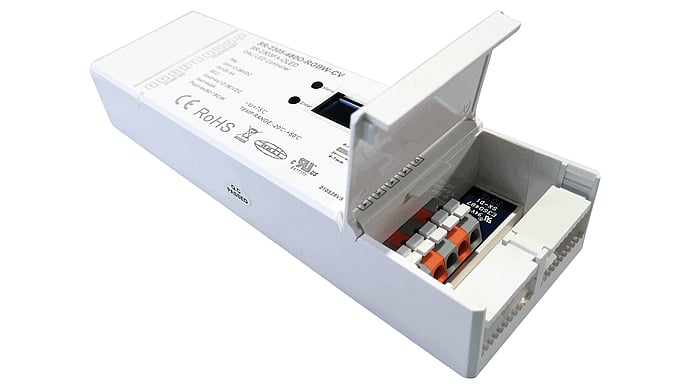

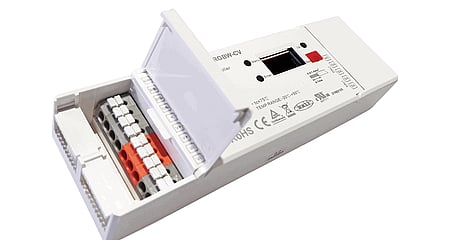

4-channel DALI DT6 LED dimmer with master function, RGBW, constant voltage 12-36VDC, max. 720W
CHF 97.00 excl. VAT, plus shipping costs
Item no:
SR-2305-480O-RGBW-CV
Stock level:1 Available immediately
Description
The 4-channel SR-2305-480O-RGBW-CV with configurable PWM output, MASTER function and DALI DT6 interface is ideal for operating RGBW constant voltage LED applications such as LED strips.
Control
- DALI DT6
Application
- Tunable White, RGBW, RGB, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- DALI DT6 dimmer, 4 channels PWM output, built-in
- DALI master function
- OLED display interface, quick and easy installation
- No DALI master required for configuration
- Cost and time savings compared to DALI USB configuration
- DALI address quantity 1-4 adjustable for 4 PWM outputs
- Enables individual addressing and grouping of 4 PWM outputs
- Enables 16 DALI scenes to be individually predefined and called up for 4 PWM outputs
- Logarithmic/linear dimming curve adjustable, corresponds to the sensitivity of the human eye
- PWM frequency adjustable from 250Hz-30kHz, flicker-free, no noise
- Allows you to set a minimum level for dimming between this and the maximum level
- Enables manual adjustment of the output level for 4 individual PWM outputs
- Enables the setting of Fade Time, Fade Rate, Power On Level, System Failure Level
- Compatible with universal DALI masters that support DT6 commands.
- Protection class IP20
- Dimension 170 x 53.4 x 28mm
- 5 year guarantee
