LED dimmer
1 channel ZIGBEE 3.0 / LV-PUSH LED dimmer, constant voltage 12-36VDC, max. 288W
CHF 41.10 excl. VAT, plus shipping costs
Item no:
SR-9101-192-CV
In stock: Available to order
Description

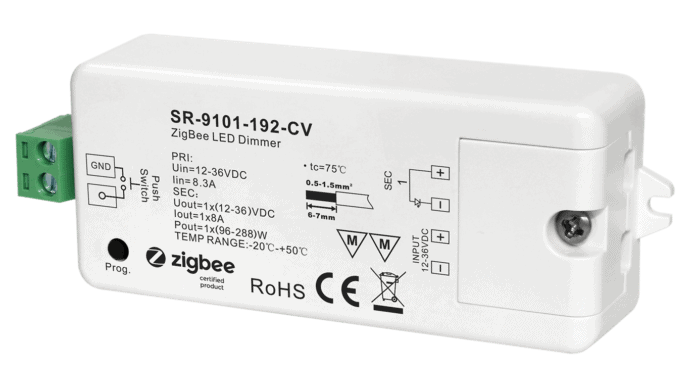

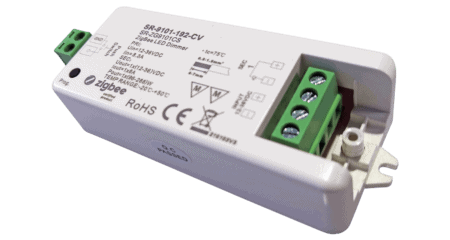

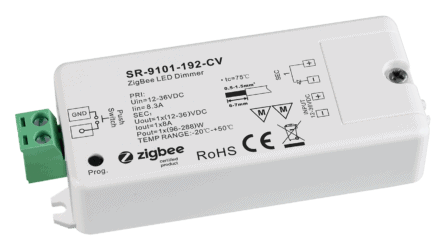

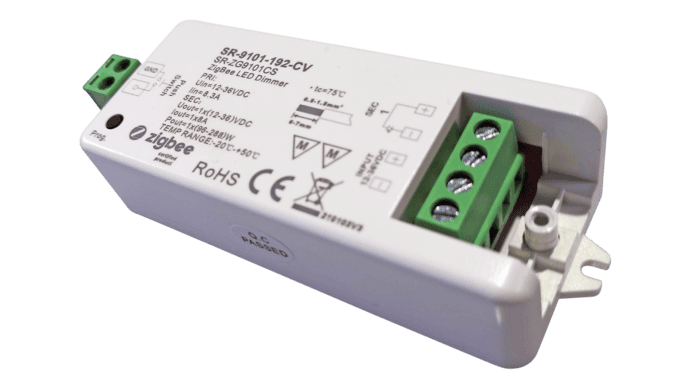

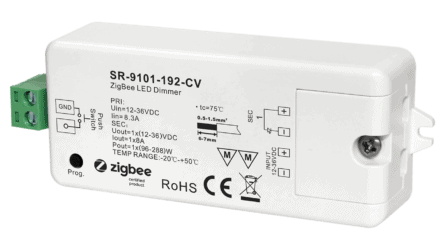

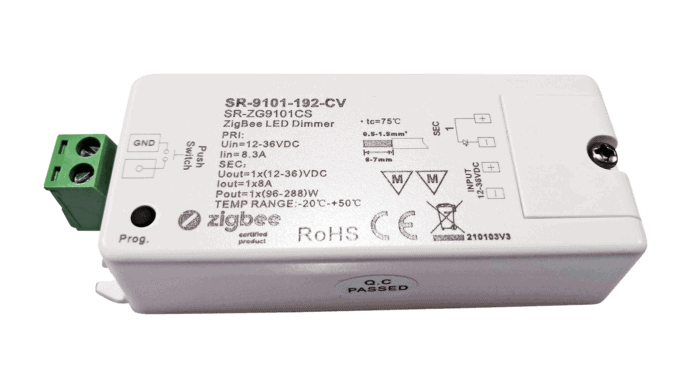

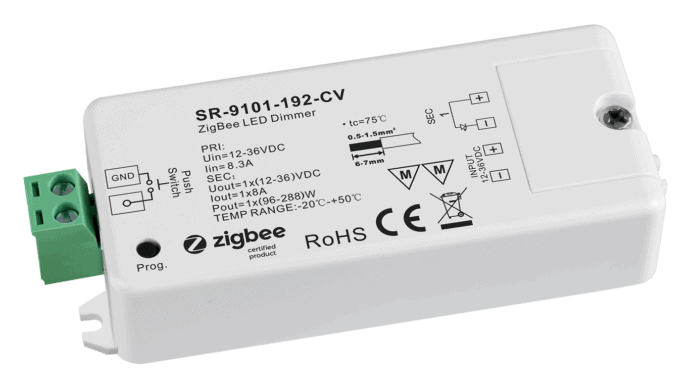

SR-9101-192-CV is a compact 1 channel LED dimmer with PWM output and ZigBee interface. Ideally suited for the operation of constant voltage LED applications such as LED strips.
Control
- ZigBee, LV-Push
Application
- Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- ZigBee 3.0 and LV Push 1 CHANNEL DIMMER
- Max. Output current: 8A
- Max. Output power at 24VDC: 192W
- IP20 Degree of protection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 95 x 37 x 20mm
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
Data sheets
| SR-9101-192-CV | PDF(639.01 KB) |
|---|
