LED dimmer
5 channel ZIGBEE 3.0 LED dimmer, RGBWW, constant voltage 12-48VDC, max. 1080W
CHF 70.80 excl. VAT, plus shipping costs
Item no:
SR-9101-600-RGBWW-CV
In stock: Available to order
Description

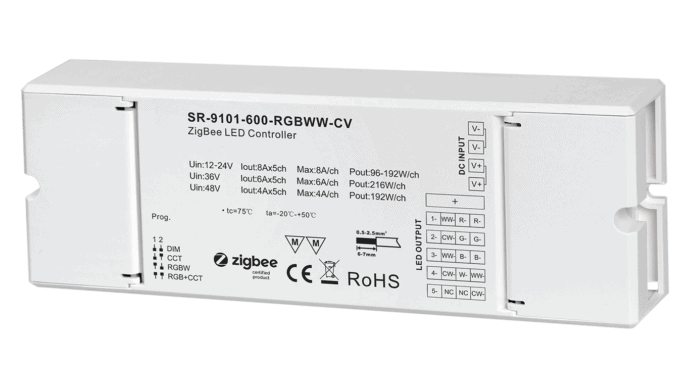

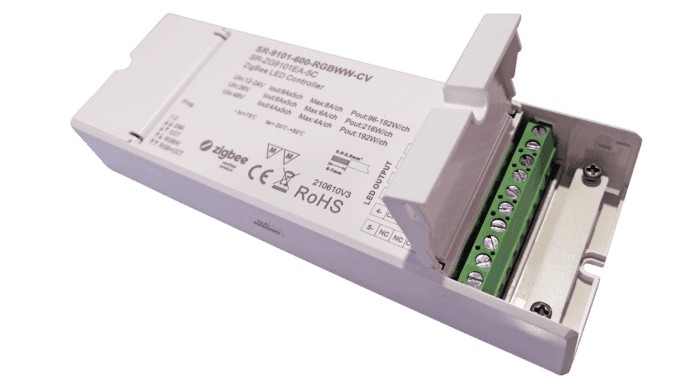

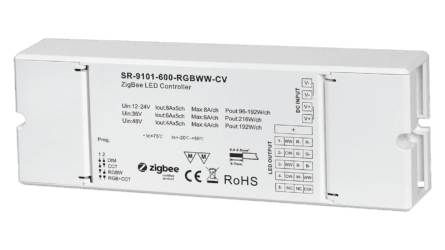

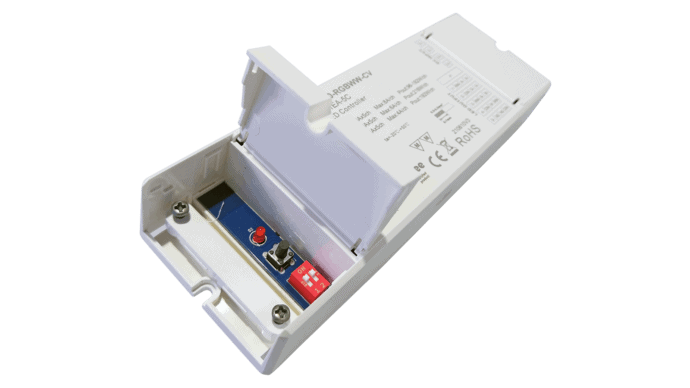

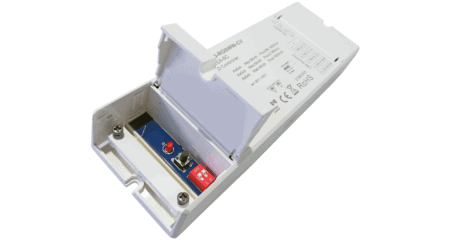

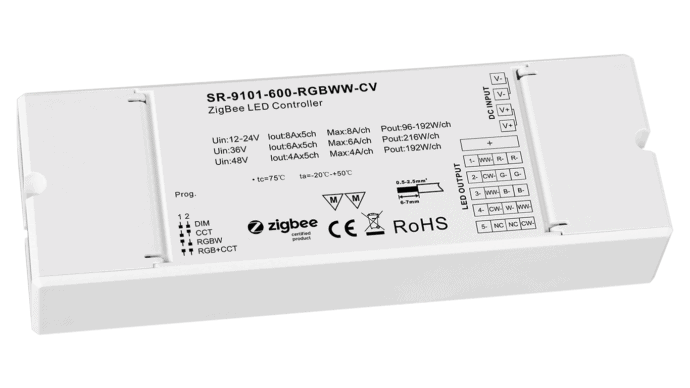

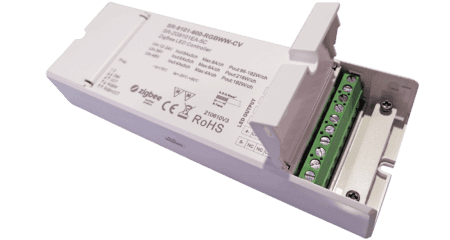

SR-9101-600-RGBWW-CV 4 in 1 universal LED controller with ZigBee interface is ideal for the operation of RGBW constant voltage LED applications such as LED strips. 4 different modes in one device => Single color dimming, Tunable White, RGBW, RGB+Tunable White.
Control
- ZigBee 3.0
Application
- Tunable White, RGBW, RGB, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- 4 in 1 universal ZigBee LED controller based on the latest ZigBee 3.0 protocol
- 4 different modes in one device => Single color dimming, Tunable White, RGBW, RGB+Tunable White
- Compatible with various ZigBee systems such as Philips Hue, Amazon Alexa, etc.
- Can be controlled directly (without ZigBee hub) via TouchLink
- Supports ZigBee Green power and can be operated with up to 20 ZigBee Green power remote controls
- Supports Find and Bin Mode
- 5-channel, max. 8A/channel
- IP20 Degree of protection
- Plastic housing
- Operating temperature range from -20°C to +40°C
- Dimension 170 x 59 x 29mm
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
Data sheets
| SR-9101-600-RGBWW-CV | PDF(1.02 MB) |
|---|
