LED operating elements

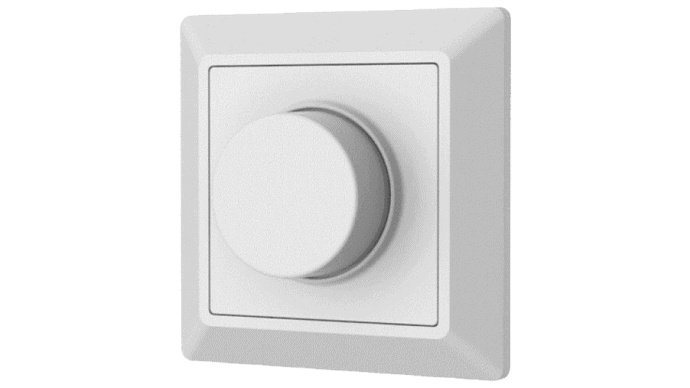

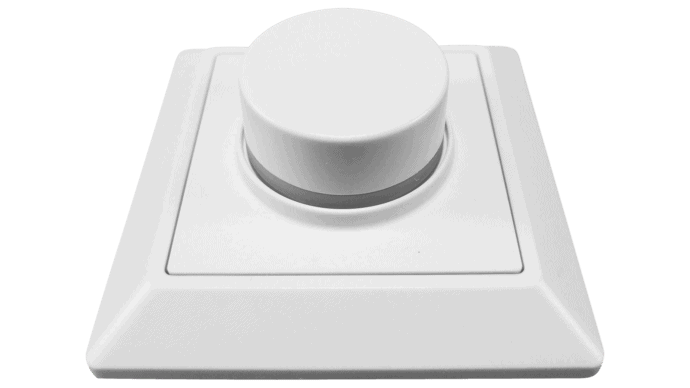

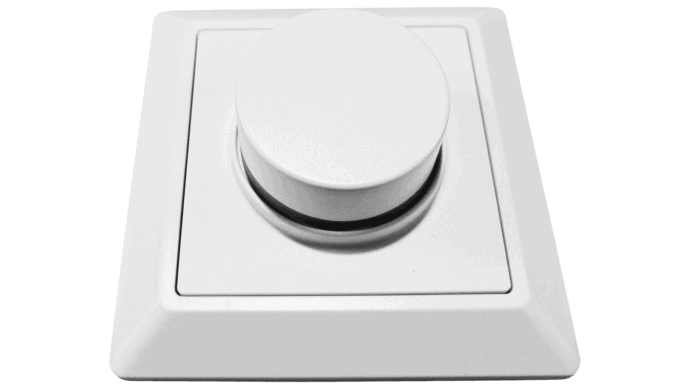

ZIGBEE 3.0 rotary switch, RGB+CCT RGBW CCT DIM 4 in 1, wall mounting, white
CHF 63.40 excl. VAT, plus shipping costs
Item no:
SC-9101-3C-RP
Stock level:12 Available immediately
Description
ZigBee3.0 rotary switch for wall mounting, suitable for all SR-9101 drivers / dimmers.
Application
- 4in1 Dim
- Tunable white, RGB, Single color, RGBW
Technical data
- Dimension: 86 x 86 x 26.9mm
- Color: white
- Operating mode: Battery
- ZigBee 4 in 1 rotary switch based on ZigBee 3.0
- Battery-operated switch with low power consumption
- Enables the coupling of ZigBee lighting devices via Touchlink commissioning without a gateway
- Supports 1 group for the coupling of max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee gateway products
- IP20 Degree of protection
- Warranty: 5 years
Additional information
| LED operating elements | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| LEDs | ||||||||||||
|
||||||||||||
| More | ||||||||||||
|
||||||||||||
Data sheets
| SC-9101-3C-RP | PDF(366.96 KB) |
|---|
Accessories
-
SR-9101-600-RGBWW-CV
5 channel ZIGBEE 3.0 LED dimmer, RGBWW, constant voltage 12-48VDC, max. 1080WCHF 70.80Available to order -
PF12.6-C30-92765-UK
Flexible TW LED strip / CC version / 2700K & 6500K, CRI >90 / 12.6m9 Available immediately
Similar products
-
SC-9101-RGBWW-W3
ZIGBEE 3.0 Remote control, RGB TW CCT DIM 3in1, whiteCHF 58.00Available to order -
SC-9101-RGBW-W4
ZIGBEE 3.0 remote control, RGBW, blackCHF 73.0020 Available immediately
