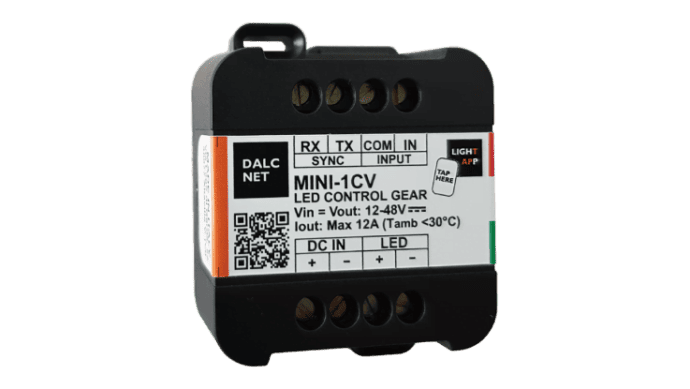

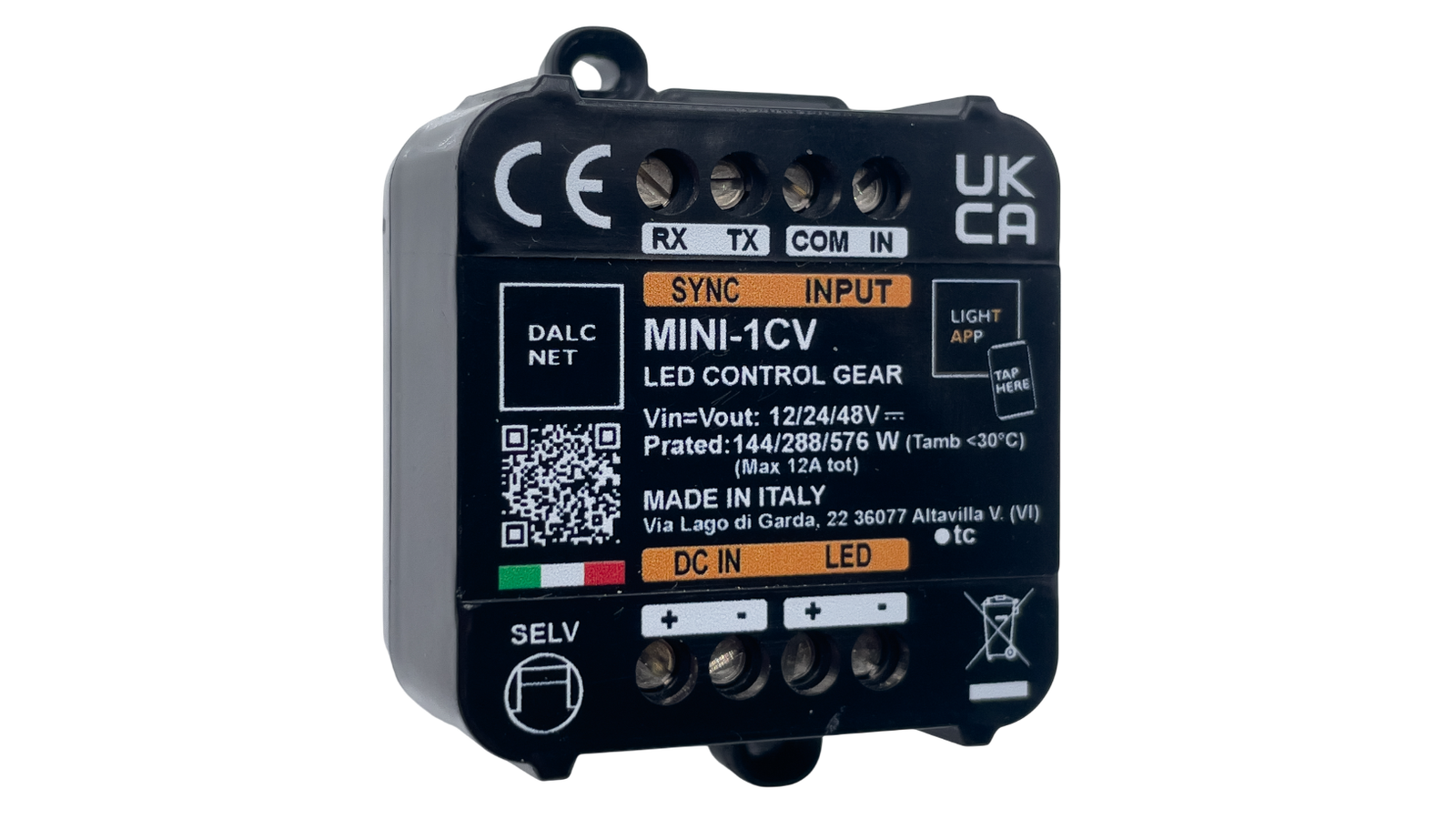

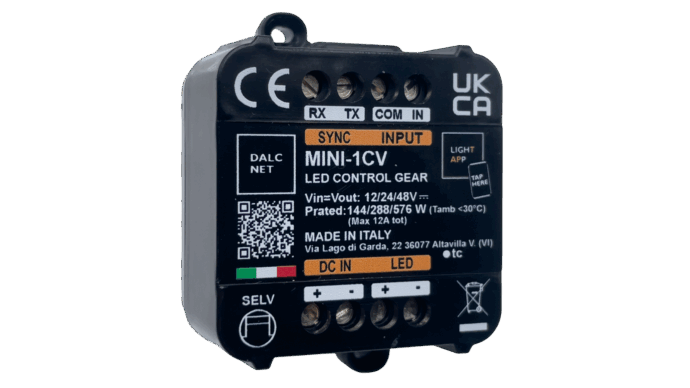

1 channel LED dimmer, constant voltage 12-48VDC, compact design
CHF 32.70 excl. VAT, plus shipping costs
Description
The MINI-1CV is a single-channel LED dimmer that can be controlled locally with a normally open push-button, a 0-10V/1-10V signal or a potentiometer.
The LED dimmer is suitable for controlling loads such as LED strips and LED modules, white and single-color constant voltage. It is possible to connect a power supply with 12-24-48 Vdc.
The maximum value of the output current is 12A. The LED dimmer has the following protective functions: Overvoltage protection, undervoltage protection, reverse polarity protection and input fuse.
The Dalcnet LightApp mobile application allows you to configure several parameters of the MINI-1CV, such as dimming frequency, dimming curve, maximum and minimum brightness level, etc. It also allows you to configure everything from simple brightness settings to 10 scenarios or dynamic animations.
LightApp can be downloaded free of charge from the Apple App Store and the Google Play Store.
⇢ You can find the constantly updated manual on our website: www.dalcnet.com
APPLE ANDROID
Technical data
Input voltage: 12-24-48VDC
Output current: 12A
Voltage output for LED strips and LED modules
WHITE and MONOCHROME lighting control
Device configuration with the Dalcnet LightApp Local Command mobile application:
o Button N°1 normally open
o 0-10V
o 1-10V
o Potentiometer 10KOhm
Constant voltage outputs for resistive loads
PWM modulation
PWM frequency can be set via APP
Adjustment curve can be set via APP
Smooth switching on and off
Extended temperature range
100% function test
5 year warranty
Additional information
| LED dimmer | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
Data sheets
| MINI-1CV | PDF(891.85 KB) |
|---|---|
| MINI-1V_German | PDF(1.24 MB) |
Downloads
| Mini-1CV Firmware V1.15 | Zip file (29.76 KB) |
|---|
