Inserts & contacts M23
M23 signal contact insert 12-pin (w) Crimp insert without contacts
Sales price (VP) per 1 piece
CHF 2.85 excl. VAT, plus shipping costs
Item no:
7004912102
Stock level:134 Available immediately
Packaging ex works:
25 pcs
Description

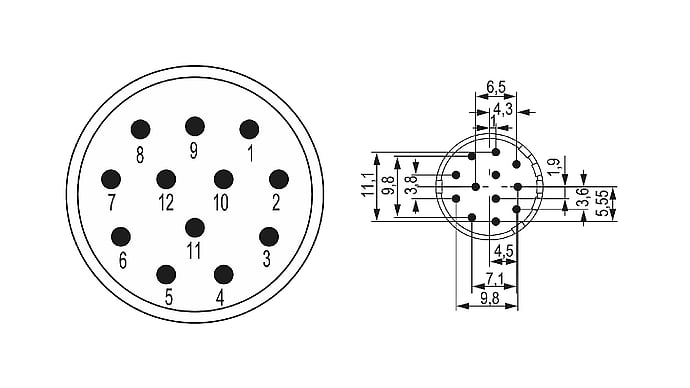

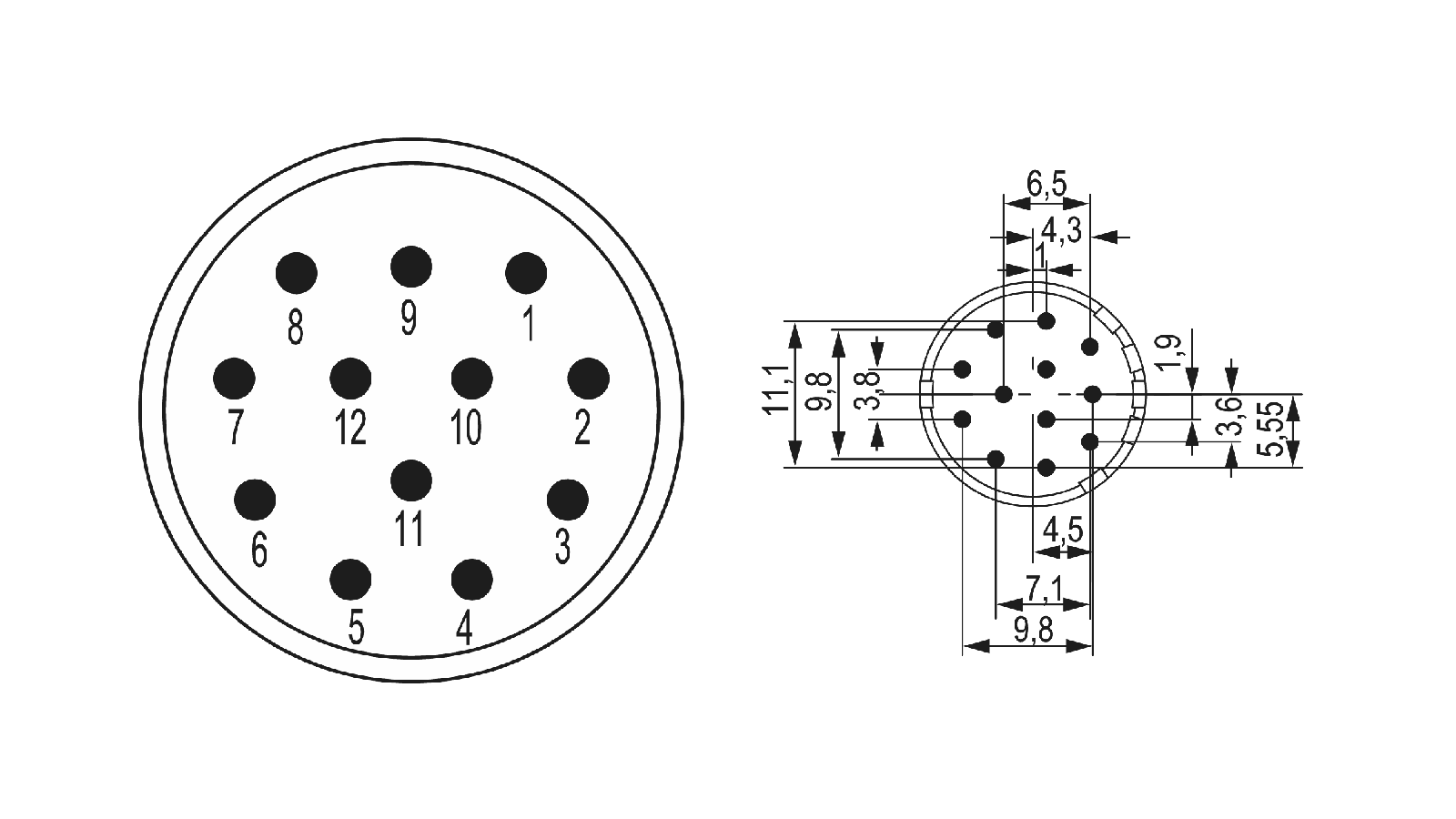

Hummel socket insert - M23 signal 12-pin, crimp insert without contacts
.
Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Crimping
- Number of poles: 12
- Pole image: 12
- Direction of rotation: Counter-rotation
- Application: Socket
- Color contact insert: white
- Insulator material: PA 6, PBT
- Number of contacts Signal: 12
- Contact Ø signal: 1 mm
- Signal connection cross-section: 0.08 - 1.5 mm²
- Rated current signal: 8 A
- Rated voltage for pollution degree 3 Signal: 200 V~
- Test voltage signal: 840 V~
- Insulation resistance signal: > 10^8 Ω
- max. contact resistance signal: 3 mOhm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
Subject to errors and technical changes
Additional information
| LEDs | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Catalog excerpt M23 Signal inserts | PDF(79.12 KB) |
|---|
Accessories
-
7004912101

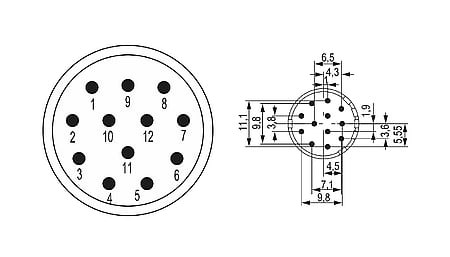

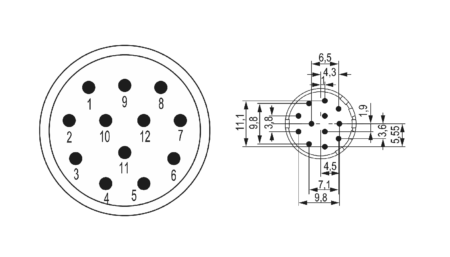

M23 signal contact insert 12-pin (m), crimp insert without contactsCHF 2.7514 Available immediately
Similar products
-
7004981101
M23 signal contact insert (m) 9-pin (8+1), crimp insert without contactsCHF 2.7520 Available immediately -
7010942001

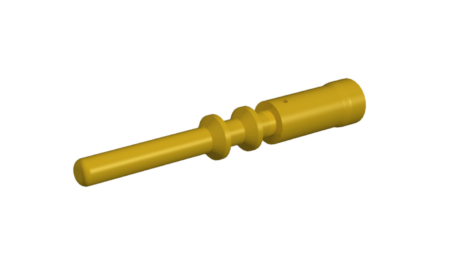

M23 crimping pin Ø 2mm, turned 7.010.942.001CHF 89.5526 Available immediately -
