M23 hybrid contact insert (w) 13-pin (4+4+4+PE) Crimp insert without contacts

Name: M23 hybrid contact insert (female) 13-pin (4+4+4+PE) crimp insert without contacts - Simpex Electronic AG
Brand: Hummel
SKU: 7084954102
Price: 24.70 CHF
Availability: InStock

Sales price (VP) per 1 piece

CHF 24.70 excl. VAT, plus shipping costs

Item no: 7084954102

Stock level:5 Available immediately

Packaging ex works: 5 pcs

Recommend:

Delivery time request Print PDF

Description

Hummel pin insert - M23 hybrid contact insert (w) 13-pin (4+4+4+PE) crimp insert without contacts
.
Other, not published HUMMEL products and versions on request.

Technical data

Connection type: Crimping
Number of poles: 13

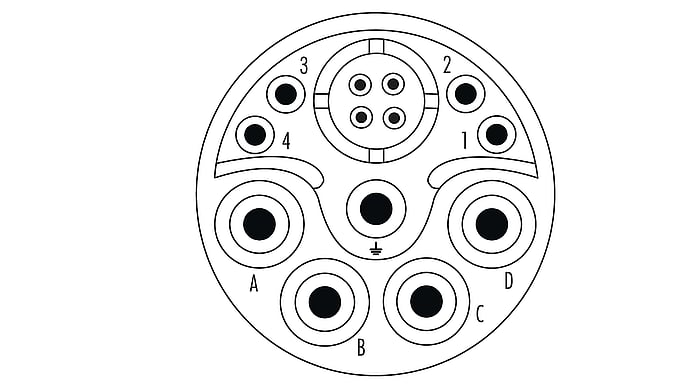

Pole image: 4 + 4 + 4 + PE
Coding: PE
Application: Socket
Ethernet insert color: white
Color contact insert: blue
Ethernet insert material: PBT
Insulator material: PBT
Number of contacts Data: 4
Number of contacts Signal: 4
Number of contacts Power: 4
Number of contacts PE: 1
Contact Ø data: 0.8 mm
Contact Ø signal: 1 mm
Contact Ø power: 2 mm
Rated current signal: 8 A
Rated current power: 28 A
Rated voltage for pollution degree 3 Signal: 50 V~
Rated voltage for pollution degree 3 Power: 600 V~
Insulation resistance data: > 10^8 Ω
Insulation resistance signal: > 10^8 Ω
Insulation resistance Power: > 10^8 Ω
max. contact resistance data: 3 mOhm
max. contact resistance signal: 3 mOhm
Max. contact resistance power: 3 mOhm
Temperature range: -40°C...+125°C
Degree of soiling: 3
Flammability: V-0 (UL 94)
Suitable data contacts: 7010980812
Suitable signal contacts: 7015961002, 7015961012
Suitable power contacts: 7010942022, 7010942024
Suitable PE/FE contacts: 7010942022, 7010942024

Subject to errors and technical changes

Additional information

LEDs

Manufacturer	Hummel

Number of poles	13
Product	Crimp insert
Nominal current (A)	8, 28
Nominal voltage (V)	24, 600
Degree of soiling	3
Certificates	VDE, UL
Temperature range	-40…+125°C
