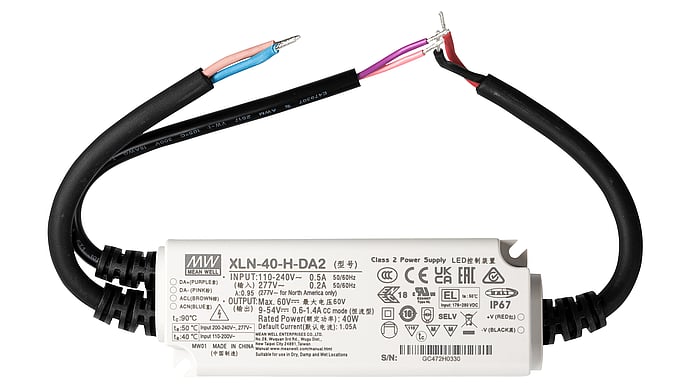

40W LED control gear 600...1400mA/9V...54V, DALI2, AC Push, NFC
CHF 43.80 excl. VAT, plus shipping costs
Description
XLN-40-H-DA2 is a flexible LED driver with constant current output for direct operation of LED lighting applications. Dimmable via AC Push or DALI.
Highlights
- The output current can be programmed via the smartphone using NFC
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- Dimmable via AC Push or DALI
- Dimming is flicker-free with current control, no PWM at the output
Control
- DALI 2.0
- AC Push
Dimming range
The dimming range is 0.1% to 100% of the selected output current.
Mean Well NFC utility
iOS Link: MEAN WELL in the App Store
Google Play Store Link: MEAN WELL – Apps on Google Play
Technical data
- Fully encapsulated plastic housing with IP67 protection
- Output current programmable via NFC
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet XLN-40 | PDF(934.43 KB) |
|---|---|
| DVT Test Report XLN-40-H | PDF(1.05 MB) |
| Declaration CO2 footprint | PDF(73.75 KB) |
Downloads
| 3D Step File XLN-40 | Zip file (388.63 KB) |
|---|
