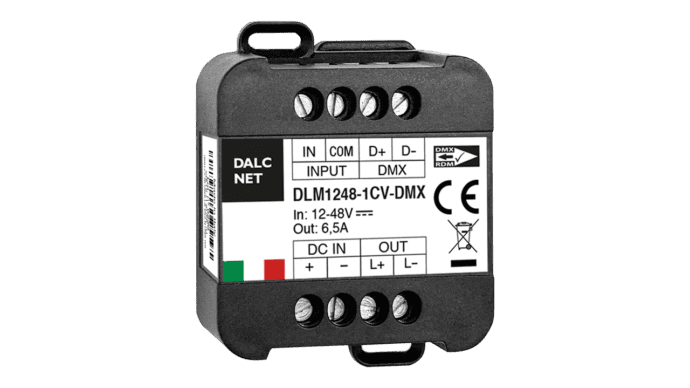

LED dimmer
1 channel DMX LED dimmer, constant voltage 12-48VDC
CHF 39.30 excl. VAT, plus shipping costs
Item no:
DLM1248-1CV-DMX
In stock: Available to order
Description
- BUS+FADER+DIMMER+DRIVER
- DC input 12-48 Vdc
- BUS command:
- DMX - MULTI INPUT - Analog Automatic detection of the local command:
- Normally open push button
- 0-10V
- 1-10V
- Potentiometer 10KOhm - PUSH MENU' - option for setting:
- Minimum dimming value
- Fade in
- Fade out - Constant voltage variant for common anode applications
- Voltage outputs for R-L-C loads DLM1248-1CV-DMX
- Memory function
- Adjusting the brightness of white light or monochromatic colors
- Adjusting the brightness up to complete switch-off
- Soft start and soft stop
- Optimized output curve
- Typical efficiency > 95%
- 100% function test
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
Data sheets
| DLM1248-1CV-DMX | PDF(922.9 KB) |
|---|
