LED dimmer

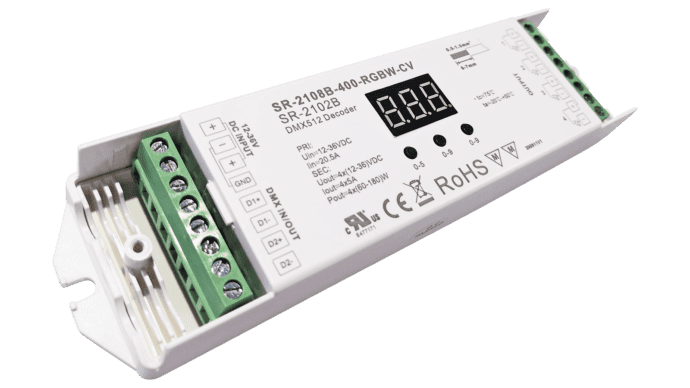

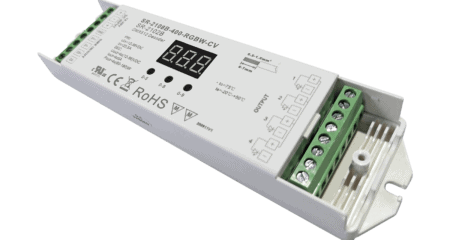

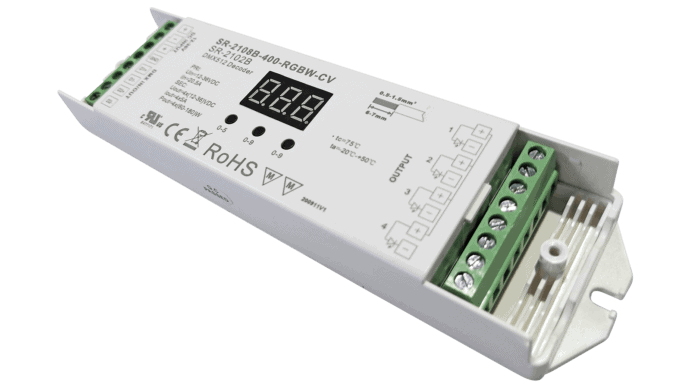

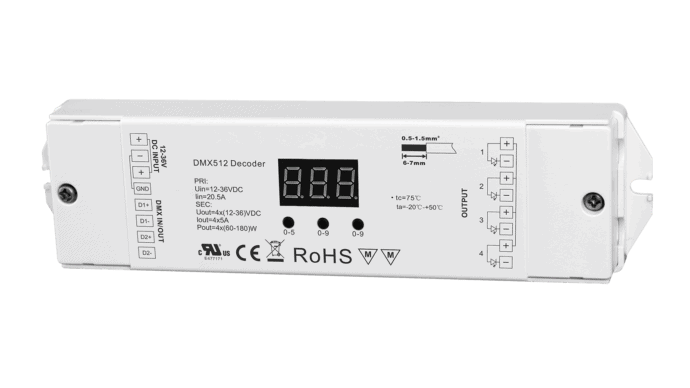

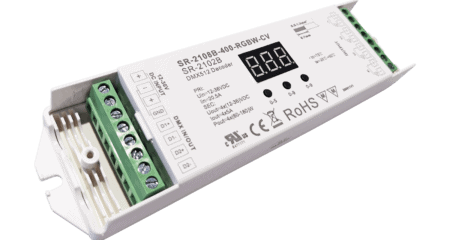

4 channel DMX512 LED dimmer, RGBW, constant voltage 12-48VDC, max. 720W
CHF 92.50 excl. VAT, plus shipping costs
Item no:
SR-2108B-400-RGBW-CV
Stock level:11 Available immediately
Description
SR-2108B-400-RGBW-CV with adjustable PWM output and DMX512 interface is ideal for the operation of RGBW constant voltage LED applications such as LED strips.
Control
- DMX512
Application
- RGBW, RGB, Tunable White, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Technical data
- DMX512 4 channel dimmer
- Standard DMX512-compliant control interface, allows the DMX address to be set freely and shows the address on a digital numerical display.
- PWM frequency 2kHz
- Compatible with standard DMX systems
- Digital DMX address display
- IP20 Degree of protection
- Plastic housing
- Operating temperature range from -20°C to +50°C
- Dimension 178 x 46 x 22mm
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
Data sheets
| SR-2108B-400-RGBW-CV | PDF(652.05 KB) |
|---|
