LED converter constant current
50W DMX512, constant current LED driver
CHF 85.00 excl. VAT, plus shipping costs
Item no:
SRP-2106-50L-C1000
Stock level:18 Available immediately
Description

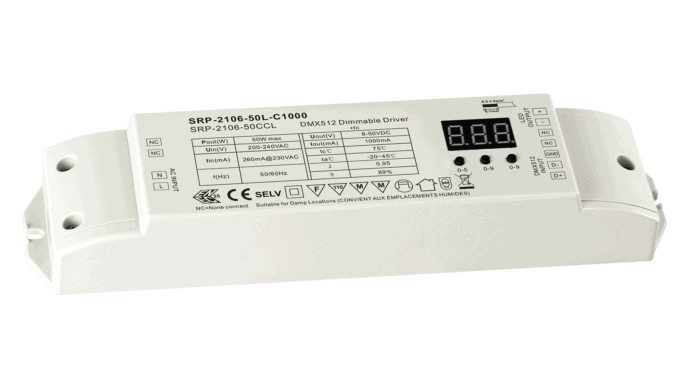

SRP-2106-50L-C1000 is a flexible, dimmable LED converter with constant current output. This power supply unit can be controlled with DMX512.
Control
- DMX512
Application
- Single Color
Dimming range
The load-independent dimming range is 1% to 100% of the connected load.
Dimming method: Amplitude dimming, Flickerfree
Technical data
- DMX512 dimmable 1-channel power supply unit
- 200-240VAC wide input voltage range
- 1-channel constant current output
- Output current of 1000mA
- Output voltage: 8-50VDC
- The maximum output power is 50W
- High power factor and efficiency
- DMX address can be set via the display
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 210 x 50 x 32mm
- 5 year guarantee
Additional information
| LED constant current | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| SRP-2106-50L-C1000 | PDF(273.15 KB) |
|---|
