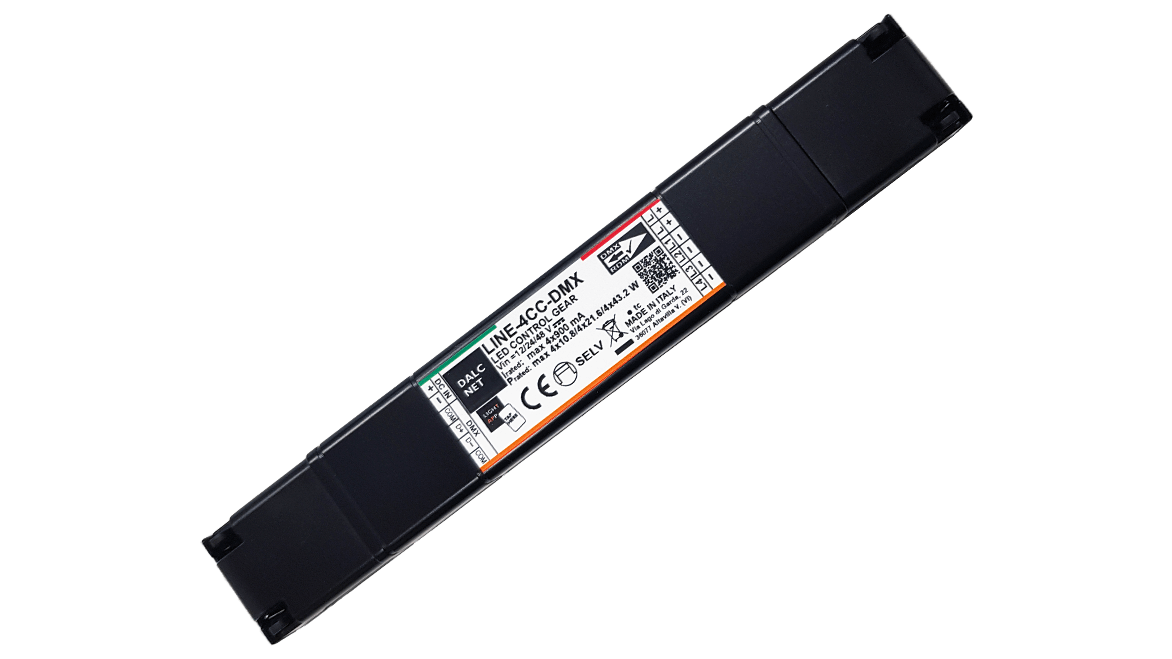

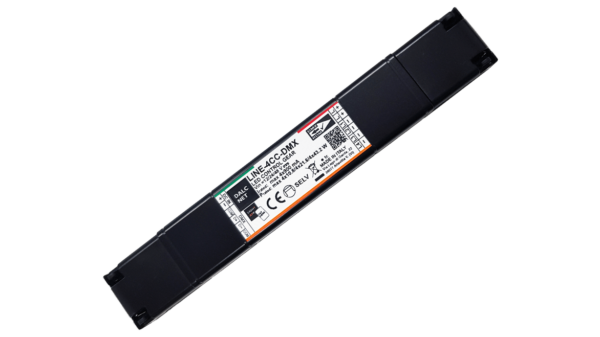

4 channel DMX LED dimmer, constant current output max. 0.9A, input 12-48VDC
CHF 119.00 excl. VAT, plus shipping costs
Description
LINE-4CC-DMX is a PWM (Pulse With Modulation) constant current LED dimmer with 4 output channels that can be controlled remotely via the DMX (Digital Multiplex) digital protocol. It can be connected to a SELV power supply with constant voltage (12 ÷ 48) Vdc and is suitable for controlling loads such as spotlight and white, monochrome, Tunable White, RGB and RGB+W constant current LED modules.
LINE-4CC-DMX can deliver a maximum output current of 900 mA per channel and has the following protection functions: Overvoltage protection, reverse polarity protection and input fuse.
Using the Dalcnet LightApp© mobile application and a smartphone equipped with Near Field Communication (NFC) technology, several parameters can be configured, including the modulation frequency, the adjustment curve and the maximum/minimum brightness levels when the device is switched off. Dalcnet LightApp© can be downloaded free of charge from the Apple APP Store and Google Play Store.
APPLE ANDROID
Technical data
- DMX LED DIMMER
- Power input: 12-24-48 Vdc
- Constant current output for dimmable spotlights and LED modules
- WHITE, UNIColored, TUNABLE WHITE, RGB and RGB+W light control
- Remote control via BUS (DMX512-A+RDM)
- Device configuration via the Dalcnet LightApp© mobile application
- Constant current outputs for R-L-C loads
- PWM modulation can be set from 300 to 3400 Hz
- The parameters can be set via the mobile application and via RDM:
-PWM frequency
-Dimming curve
-Power ON level
-DMX personality - Operating hours and ignition cycles parameters
- Input protection
- Opto-isolated DMX input
- Soft ON/OFF
- Gentle dimming of the brightness
- 100% function test
- Dimensions: 186 x 29 x 21mm
- 5 year guarantee
Additional information
| LED dimmer | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
Data sheets
| LINE-4CC-DMX | PDF(1.46 MB) |
|---|
Accessories
-

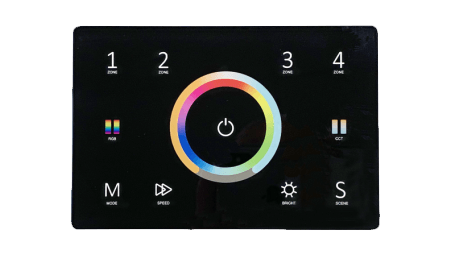

DMX-T4-ZONE-B
DMX512 Touch Panel, W , TW , RGB , RGB+W control, blackCHF 88.80Available to order -

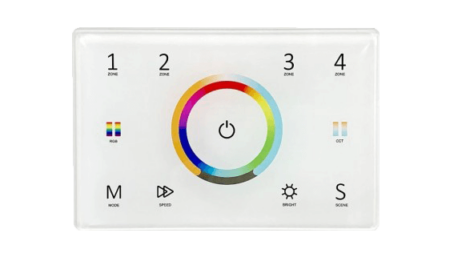

DMX-T4-ZONE-W
DMX512 Touch Panel, W , TW , RGB , RGB+W control, whiteCHF 110.00Available to order -

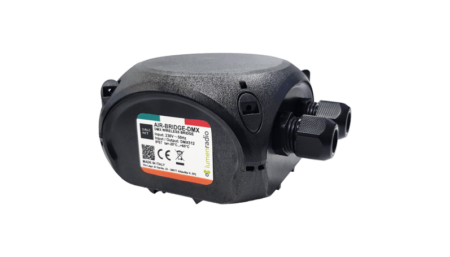

AIR-BRIDGE-DMX
Wireless DMX / RDM device (transmitter and receiver), IP67CHF 487.502 Available immediately -
PF25.2-C16-S930-UK-B
Flexible LED strip / CC version / 3000K, CRI >90 / 25.2m13 Available immediately -
PF12.6-C30-92765-UK
Flexible TW LED strip / CC version / 2700K & 6500K, CRI >90 / 12.6m6 Available immediately -
DGM02
Server Gateway, 12-48VDC, DALI, DMX, MODBUSCHF 506.002 Available immediately
Similar products
-

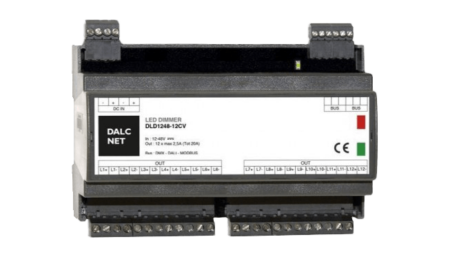

DLD1248-12CV-DMX
