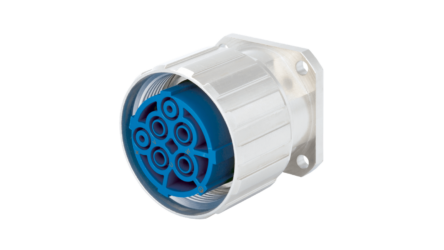

Housing M40 power appliance coupler 2 + 3 + PE for sockets (7.744.023.000)
CHF 57.35 excl. VAT, plus shipping costs
Description

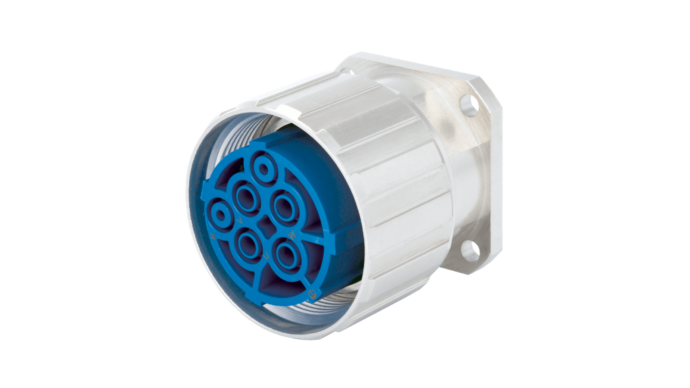

M40 power appliance coupler for sockets (housing including insert for sockets, excl. contacts)
The M 40 connector series is suitable for high currents and is preferably used for heavy-duty drive applications. The high-quality metal housing meets all the requirements of a harsh industrial environment and impresses with its long service life.
.
// suitable for high-current applications
. // safe EMC protection
.
Other, unpublished HUMMEL products and versions on request.
Technical data
- Housing material: copper-zinc alloy
- Material housing surface: nickel-plated
- Application: Socket
- Mounting type: Front wall
- Version: for socket inserts
- Internal thread on plug-in side: M40 x 1.5
- Knurled nut Ø on plug-in side: 45.6 mm
- Locking type: Screw fastening
- Shielding: unshielded
- Seal type: O-ring
- Material seals/o-rings: FKM (FPM), NBR

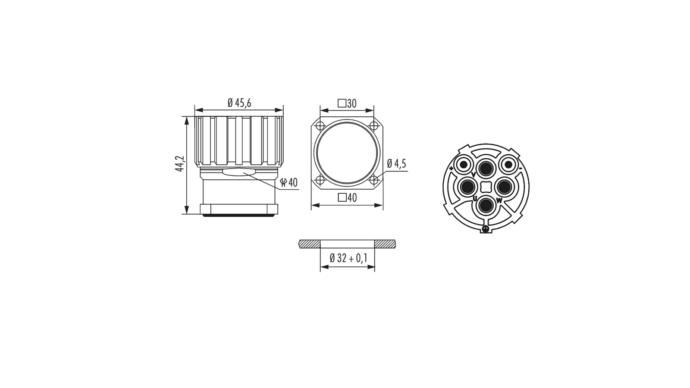

- Installation dimensions: Ø 32 + 0.1 mm
- Length (L): 44.2 mm
- Width across flats: 40 mm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Protection class: IP67 / 69K
- Connection type: Crimping
- Number of poles: 6
- Pole image: 2 + 3 + PE
- Color contact insert: blue
- Insulator material: PBT
Subject to errors and technical changes
Additional information
| Circular connector | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Data sheet | PDF(324.69 KB) |
|---|---|
| Catalog excerpt M40 Performance | PDF(274.65 KB) |
