M40

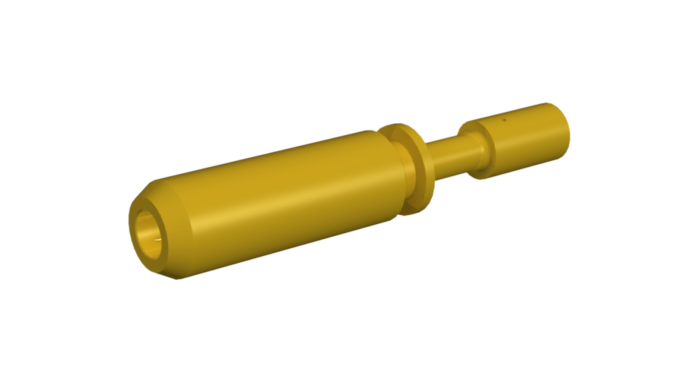

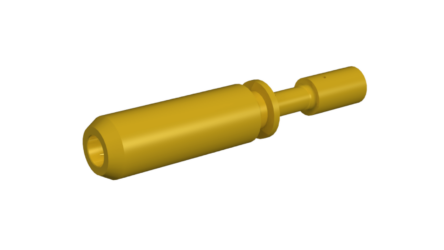

M40 crimp socket 3.6 mm, turned (7.015.953.602)
Price per 100 pieces
CHF 614.60 excl. VAT, plus shipping costs
Item no:
7015953602
In stock: Available to order
Packaging ex works:
1 bag (25 pieces each)
Estimated delivery time:
1-2 weeks
Description
Contact: Crimp socket (f) 1.5 - 4.0 mm2 for Hummel contact inserts M40 Power
Article number: 7015953602 (7.015.953.602)
suitable for contact inserts: M40 power
requires crimp pins: 7015953601 (7.015.953.601)
(PU = 25 pieces)
Suitable crimping pliers: 7000900919, 7000900920, 7010900153
Technical data
- Connection type: Crimping
- Application: Socket
- Crimp contact: Crimp pin power 3.6 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø power: 3.6 mm
- Length (L): 42.2 mm
- Connection range: 1,5 - 4 mm²
- Suitable crimping pliers: 7000900919, 7000900920, 7010900153
- Manufacturer: Hummel
Subject to errors and technical changes
