M16
M40 crimp socket 3.6 mm, turned 7.015.953.612
Price per 100 pieces
CHF 614.60 excl. VAT, plus shipping costs
Item no:
7015953612
Stock level:13 Available immediately
Packaging ex works:
1 bag (25 pieces each)
Description

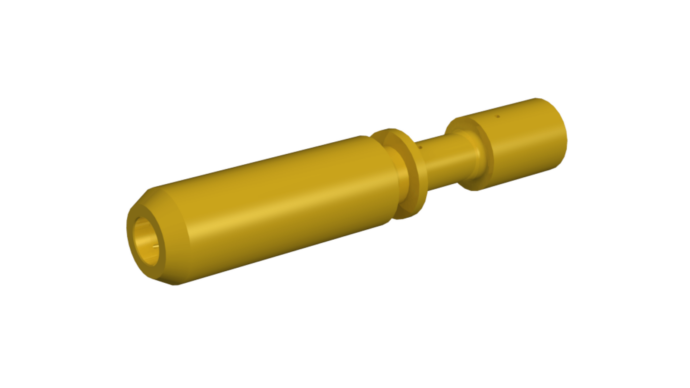

Contact: Crimp socket (f) 6.0 mm2 for Hummel contact inserts M40
Article number: 7.015.953.612
suitable for contact inserts: M40 power
requires crimping pins: 7015953611 (7.015.953.611)
(PU 1 bag of 25 pieces)
Suitable crimping pliers: 7000900919, 7000900920, 7010900153
Technical data
- Connection type: Crimping
- Application: Socket
- Crimp contact: Crimp pin power 3.6 mm turned
- Contact material: Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø power: 3.6 mm
- Length (L): 42.2 mm
- Connection range: 6 - 6 mm²
- Suitable crimping pliers: 7000900919, 7000900920, 7010900153
- Manufacturer: Hummel
Subject to errors and technical changes
