M40 hybrid cable connector housing
CHF 116.80 excl. VAT, plus shipping costs
Description

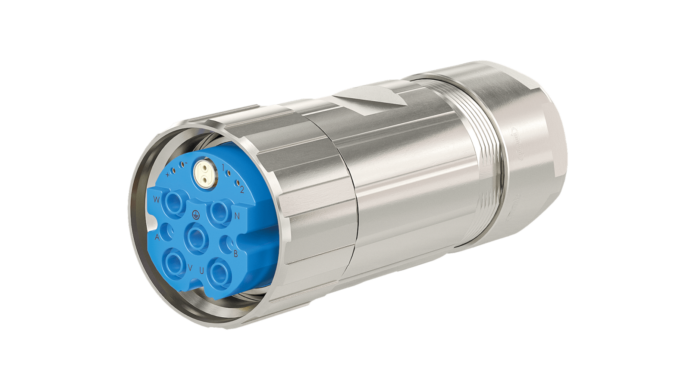

M40 hybrid cable connector (housing including insert for sockets, excl. contacts)
The M 40 connector series is suitable for high currents and is preferably used for heavy-duty drive applications. The high-quality metal housing meets all the requirements of a harsh industrial environment and impresses with its long service life.
.
// suitable for high-current applications
. // safe EMC protection
.
Other, unpublished HUMMEL products and versions on request.
Technical data
- Housing design: Cable
- Housing material: die-cast zinc
- Material housing surface: nickel-plated
- Application: Socket
- Version: Screw
- Internal thread on plug-in side: M40 x 1.5
- Knurled nut Ø on plug-in side: 46 mm
- Locking type: Screw fastening
- Shielding: shielded
- Seal type: O-ring
- Material seals/o-rings: FKM (FPM), NBR
- Cable diameter: 13-18 mm

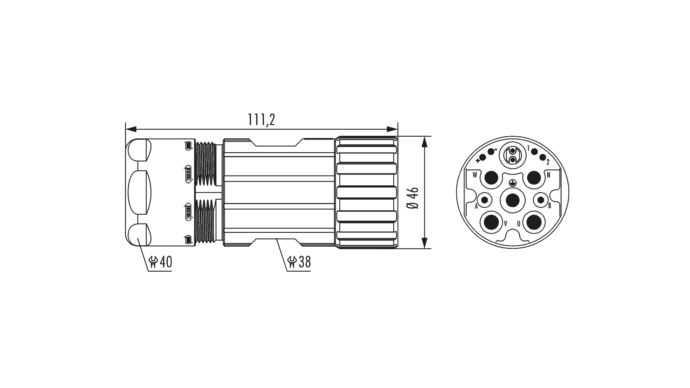

- Length (L): 111.2 mm
- Width across flats (SW1/SW2): 40/38 mm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Protection class: IP67 / 69K
- Connection type: Crimping
- Number of poles: 13
- Pole image: 2 + 6 + 4 + PE
- Ethernet insert color: white
- Color contact insert: blue
- Insulator material: PBT
- Material Ethernet insert: PA 6
- Number of contacts Data: 2
- Number of contacts Signal: 6
- Number of contacts Power: 4
- Number of contacts PE: 1
- Connection cross-section data: 0.05 - 0.34 mm² / 0.14 - 1 mm²
- Connection range: 0.05 - 16 mm² / 0.14 - 16 mm²
Subject to errors and technical changes
