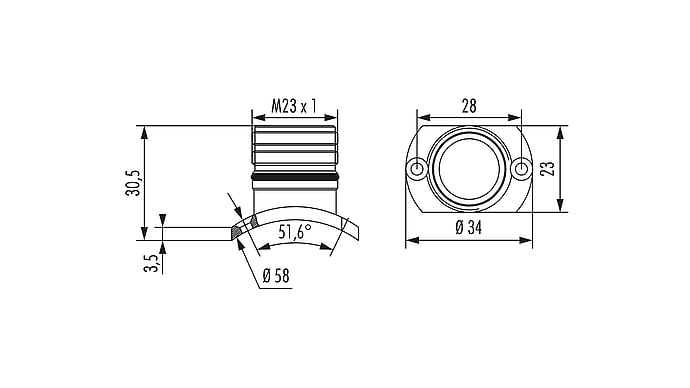

Housing M23 signal device connector with radius Ø 58mm
CHF 13.75 excl. VAT, plus shipping costs
Description
M23 signal device connector with radius (housing only, excl. insert and contacts)
.
This proven and universally applicable connector system is widely used in industry. The freely configurable connectors from HUMMEL AG impress with their robustness and reliability. The modular range offers the user almost unlimited
almost unlimited possibilities.
.
// numerous housing designs
// wide range of variants
// TWILOCK / TWILOCK-S quick-release fastener
.
Further, not published HUMMEL products and designs on request.
Technical data
- Housing material: copper-zinc alloy
- Material housing surface: nickel-plated
- Version: with vibration protection
- Male thread on plug-in side: M23 x 1
- Locking type: Screw fastening
- Shielding: unshielded
- Material seals/o-rings: NBR
- Protection class: IP67 / IP69K
- Temperature range: -40°C...+125°C
// Gehäuse ohne Kontakteinsätze
// elektrische Daten sind abhängig vom Kontakteinsatz
.
Fehler und technische Änderungen vorbehalten
Additional information
| Circular connector | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
|
||||||||||
| More | ||||||||||
|
||||||||||
Data sheets
| Catalog excerpt M23 Signal | PDF(86.95 KB) |
|---|
