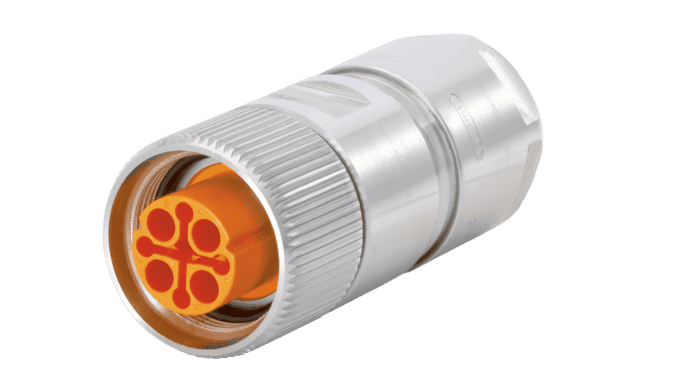

Housing M16 cable connector INOX
CHF 52.10 excl. VAT, plus shipping costs
Description
Housing M16 cable connector INOX (housing only, excl. insert and contacts)
Special applications require special solutions. This also applies to circular connectors made of stainless steel. They are used wherever the ambient conditions are extremely harsh or the hygienic requirements are particularly high.
.
// Signal connector M 16 INOX
// Signal connectors M 23 INOX
// M 23 INOX power connectors
.
Further, not published HUMMEL products and versions on request.
.
Technical data
- Housing design: Cable
- Housing material: Stainless steel 1.4404 (AISI 316)
- Application: Socket
- Version: Screw
- Internal thread on plug-in side: M16 x 0.75
- Knurled nut Ø on plug-in side: 19.7 mm
- Locking type:Screw fastening
- Shielding:shielded
- Seal type: O-ring
- Material seals/o-rings: FKM (FPM)
- Width across flats (SW1/SW2): 18/18 mm
- Cable diameter: 3-6mm / 5-9mm / 8-11mm
- Temperature range: -40°C à +125°C
- Protection class: IP67 / 69K
Modifications techniques réservées
Additional information
| Circular connector | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| 7.814.300.000 3-6mm | PDF(96.37 KB) |
|---|---|
| 7,814,400,000 5-9mm | PDF(93.85 KB) |
| 7,814,500,000 8-11mm | PDF(94.14 KB) |
| Catalog excerpt | PDF(92.35 KB) |
