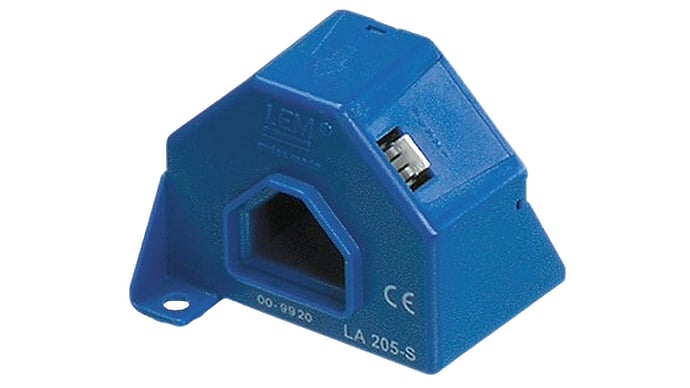

Current transformer
Current transformer 300A / measuring range 640A / high accuracy / fast response time / DC, AC and pulse currents (special version with shielded cable for railroad technology)
Item no:
LA 205-S/SP21
In stock: Available to order
Please register for price display.
Description
- Series: LA205
- Special version for railroad technology: measuring range up to 640A, transmission ratio Np to INs = 1 : 3000, operating temperature: -40 °C to +85 °C, shielded, 3-pole cable, etc.
- Closed loop Hall effect current sensor (AC, DC, pulse current measurement)
- Galvanic isolation of primary and secondary circuit
- Bandwidth: DC up to 100 kHz
- Housing: UL 94-V0 plastic
- Assembly: PCB
- 5 year guarantee
- Advantages: Excellent accuracy, very good linearity, low temperature drift, optimized response time, wide frequency bandwidth, no insertion losses, high interference immunity, overload capability
- Typical applications: Railroad technology, drives, frequency converters, battery-powered applications UPS, SMPS, welding applications
Technical data
- Rated current: 300 A
- Measuring range: up to 640A
- Current output, direct mapping: 100 mA
- Supply: ±15 ... 24 V bipolar
- Accuracy: ±0.8 %
- Operating temperature: -40 °C to +85 °C
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| LA 205-S/SP21 | PDF(153.89 KB) |
|---|
Downloads
| 3D STEP File LA 205-S/SP21 | Zip file (4.24 MB) |
|---|
