Current transformer

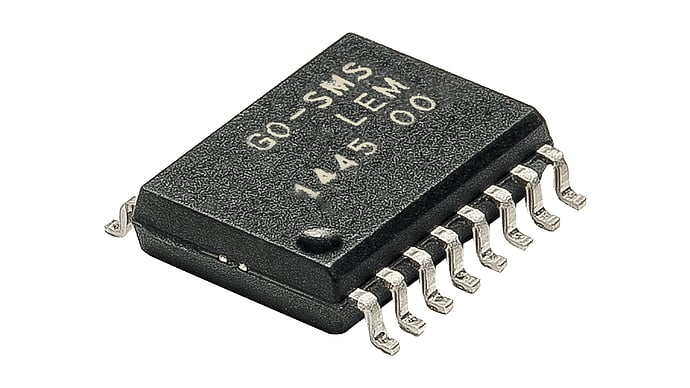

Current transformer 20A SMD SO16 / Low profile / DC, AC, pulse currents
CHF 5.35 excl. VAT, plus shipping costs
Item no:
GO 20-SMS
In stock: Available to order
Description
- IC SO16 housing for automatic SMD placement
- Contactless AC & DC current measurement for 20 A nominal
- 1.3% Accuracy at + 25°C
- 2 µs response time
- Cost-effective design
- Insulation test voltage 3000 VRMS for SO16 enclosure
- Low offset and gain drift
- 5 year guarantee
- Operating temperature: -40°C to +125°C
- Manufacturer LEM
Technical data
- Open Loop Hall effect ASIC-based technology
- Integrated primary conductor for gradient measurement
- Excellent immunity to external fields
- DC bandwidth up to 300 kHz
- Unipolar power supply +5V
- Analog voltage output (0.8V at Ipn)
- 2 different overcurrent outputs (SO16 version)
Additional information
| Current transformer | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| GO 20-SMS | PDF(529.23 KB) |
|---|
