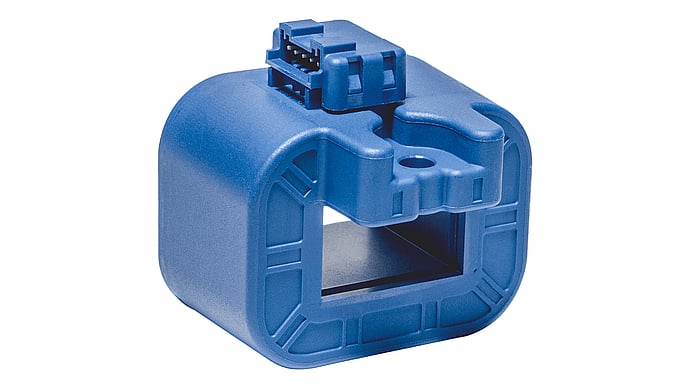

Current transformer
Current transformer 200A / DC, AC, pulse / overcurrent detection
CHF 37.50 excl. VAT, plus shipping costs
Item no:
HOYS 200-S/SP33-1106
In stock: Available to order
Description
High-performance, cost-effective, contactless current transformers that can be mounted directly on the busbar
- Open Loop (O/L) ASIC technology
- Voltage output
- Overcurrent detection 2.93 x Ipn (peak value)
- Short response time: 3.5us
- Galvanic isolation between primary and secondary circuit
- Energy efficient
- Factory calibration
Technical data
- DC, AC and pulse current measurement with galvanic isolation
- Unipolar power supply +3.3V
- 1% accuracy at room temperature / 4.6% from -40°C to +105°C
- Insulation test voltage of 5.4kVrms / 50Hz / 1min
- Voltage output (0.8V at Ipn)
- Bandwidth DC...180kHz (-3dB)
- For mounting directly on the conductor rail - opening 21.5 x 13mm
Additional information
| Current transformer | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| HOYS 200-S-SP33-1106 | PDF(854 KB) |
|---|
Downloads
| 3D Step File HOYS 200-S-SP33-1106 | Zip file (751.54 KB) |
|---|
