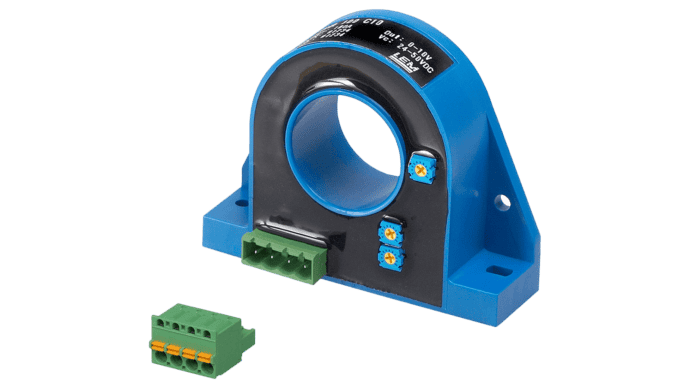

Current transformer
Current transformer 200A / True-RMS / DC, AC currents up to 6kHz
Special price - while stocks last
Instead of CHF 254.30CHF 211.00 excl. VAT, plus shipping costs
Item no:
DHR 200 C10
Stock level:18 Available immediately
Description
- Current transformer and signal conditioning in one housing
- Complete range of AC and DC current measurements
- Effective RMS (True RMS)
- Output 0-10V (C10)
- 1% absolute accuracy
- Bandwidth: DC 20..6000Hz
- Manufacturer LEM
Technical data
- Supply range 20 to 50VDC
- Operating temperature -40°C to +70°C
- Isolated test voltage 5kVrms / 50Hz / 1min
- Conductor bushing 32mm (for non-contact measurement)
- Dimension 90 x 70 x 34mm
- Use of UL94-V0 recognized materials
Additional information
| Current transformer | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| DHR 200 C10 | PDF(281.56 KB) |
|---|---|
| 3D CAD Model DHR Series | PDF(86.61 KB) |
Downloads
| 3D Step File DHR 200 C10 | Zip file (749.48 KB) |
|---|
