Current transformer

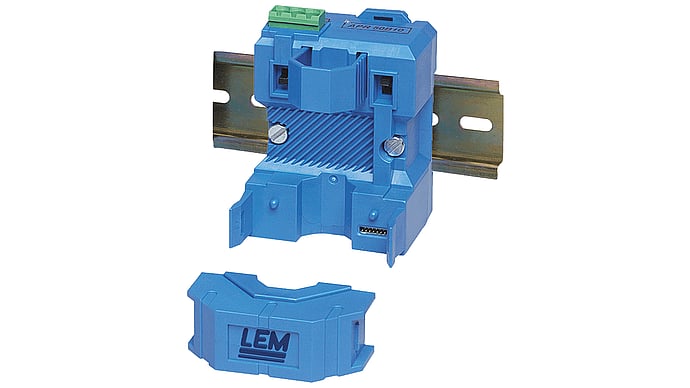

AC split core current transformer 50A, 75A, 100A / RMS / DIN rail
Hinged AC current transformers with PRiME technology for DIN installation.
CHF 140.00 excl. VAT, plus shipping costs
Item no:
AP 100 B10
In stock: Available to order
Description
- RMS value output RMS (AP)
- Primary rated current Ipn switchable (jumper)
- Output signal: 0-10V (B10)
- Accuracy 1%
- Linearity: 0.5%
- Bandwidth up to 6kHz
- Manufacturer LEM
Technical data
- Measurement of AC currents with galvanic isolation
- Supply: +24VDC, or "loop-powered" (version 4-20mA)
- Insulation test voltage: 5kVRMS / 50Hz/ 1min
- Temperature range -20°C to +60°C
- Low weight of only 90g
- UL94-V0 recognized
Additional information
| Current transformer | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| AP 100 B10 | PDF(243.05 KB) |
|---|
Downloads
| 3D Step File AP 100 B10 | Zip file (1.73 MB) |
|---|
