XDR-E series - Cost-effective, ultra-slim DIN rail power supply units from 75 to 960W output

With the XDR-E series, Simpex Electronic is introducing the new generation of DIN rail power supplies from MEAN WELL to the Swiss market.

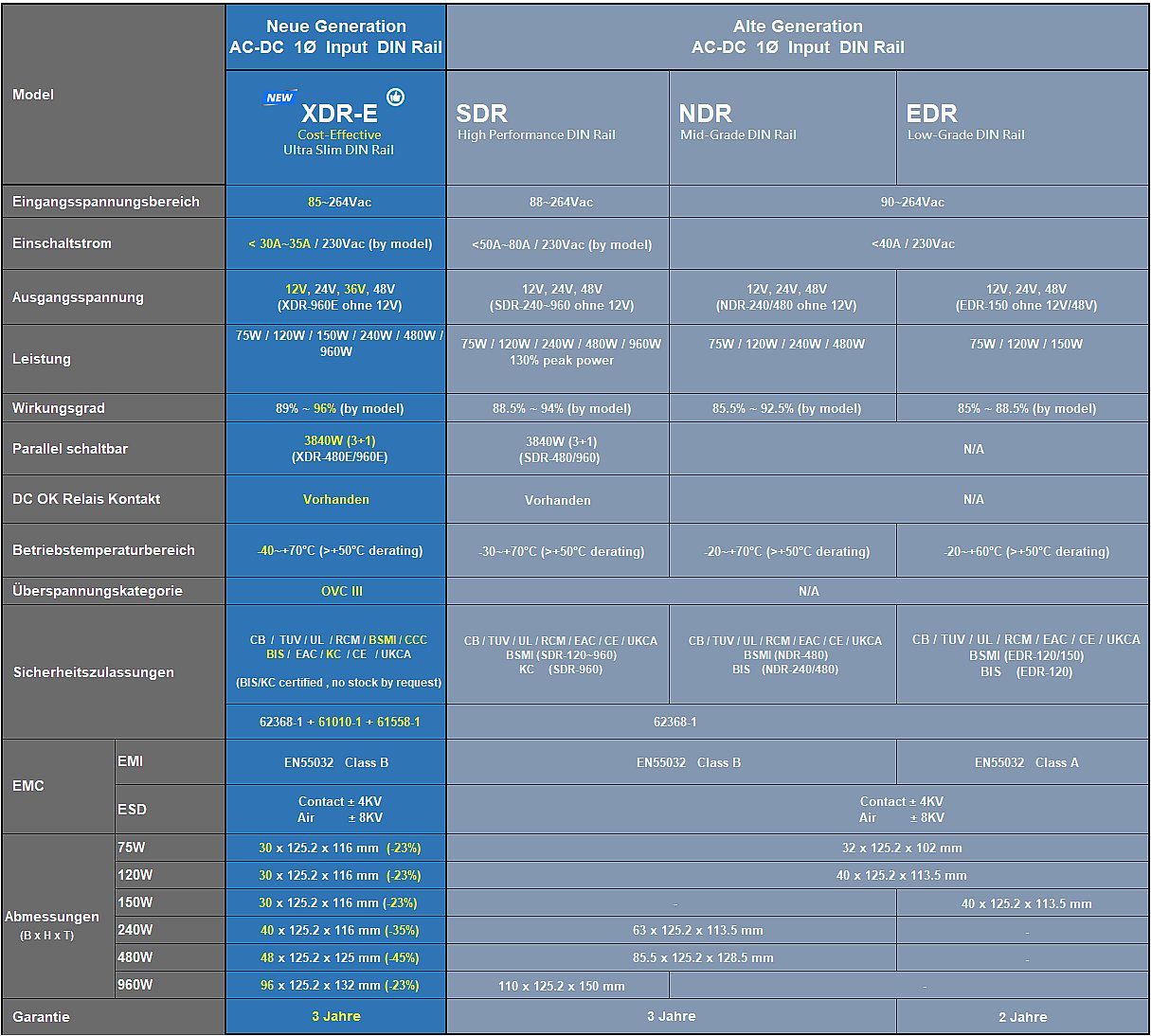

Based on the latest circuit technologies, the power supply units are up to 45% more compact than the previous NDR series and are therefore among the smallest power supply units for DIN rail mounting on the market. This design is made possible by a very high efficiency of up to 96%.

The devices are available with output voltages of 12V / 24V / 36V / 48Vdc and power ratings of 75W / 120W / 150W / 240W / 480W and 960W. Extensive safety approvals (62368-1, 61010-1, 61558-1) for worldwide use, overvoltage category III and an excellent price-performance ratio make the power supply units the perfect solution for the power supply in your control cabinet.

Features of the XDR-E series

• 85-264Vac Input voltage range
• Extremely slim design 30 to 96 mm (depending on power)
• Efficiency up to 96%
• OVC III
• Operation up to 5000m above sea level
• Certified for CB/UL/TUV62368-1, 61010-1, 61558-1
• 3-year guarantee
