MEAN WELL NSP series - the next step after the RSP success story

The MEAN WELL RSP-75/100/150/200/320 series have been successful on the market for over 10 years and have gained worldwide recognition with over 10 million devices sold. They are used in a wide variety of applications - from industrial control, communication and lighting technology to safety and fire protection systems.

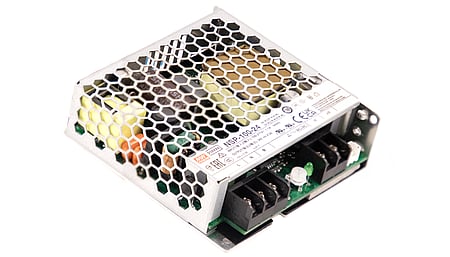

MEAN WELL is now presenting the new NSP series (75/100/150/200/320) to meet the increasing demand for more compact designs and greater efficiency.

The NSP series surpasses the proven RSP series in every respect:

• Significantly more compact design
• Extended temperature range from -40 to +85 °C (full load operation up to +60 °C) for use even in demanding environments
• Broad safety certifications for ICT, industry, medicine, household and renewable energies
• Optimized price-performance ratio, longer warranty periods and increased reliability

This makes the NSP series the logical successor to the RSP series - with improved features, attractive pricing and ideal for almost any new design.

Properties

• The extremely wide input voltage range of 85 to 305 VAC is compatible with the 277 VAC voltage commonly used in North America and is less susceptible to damage from unstable AC sources.
• High efficiency (90 to 94.5 %) with low No load power consumption (<0.3 W to 0.5 W, depending on model)
• 200 % peak output power
• Extremely wide operating temperature range from -40 to +85 °C (full load operation at +60 °C).
• Fanless design (NSP-75 to 200) or integrated low-noise fan <40 dB (NSP-320)
• Comprehensive protection: short circuit, overload, overvoltage and overtemperature.
• Meets the requirements of OVC III
• Suitable for operation at altitudes of up to 5000 meters
• Programmable output voltage
• Extremely low leakage current <350 µA; fulfills 2xMOPP and medical BF applications
• Printed circuit board with protective coating for moisture resistance and improved durability
• 5 year guarantee
