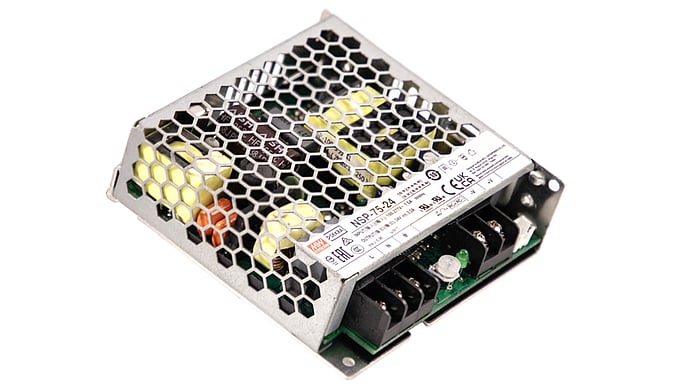

75W Power supply 24V/3.2A, Industrial, Medical, Household
CHF 25.30 excl. VAT, plus shipping costs
Description
The NSP-75 is a powerful 75 watt power supply unit with integrated PFC function. It meets the highest reliability requirements and is certified for use in ITE/AV, medical and household applications. Thanks to its compact design, outstanding efficiency and a wide temperature range of -40 °C to +85 °C, it can be used in a wide variety of applications. With the peak power function, twice the power can be supplied at short notice.
Technical data
- Input voltage 85 to 305Vac
- With active PFC
- Peak power of 150W for 5 seconds
- Metal housing with screw terminals
- Remote On/Off function
- Protective lacquered PCB
- Operating temperature range from -40°C to +85°C
- Dimensions 99 x 97 x 30mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet NSP-75 | PDF(845.55 KB) |
|---|---|
| DVT Test Report NSP-75-24 | PDF(1.28 MB) |
| Carbon Footprint Declaration NSP-75 | PDF(73.54 KB) |
Downloads
| 3D Step File NSP-75 | Zip file (591.45 KB) |
|---|
Accessories
-
TBC-02-DG
Cover for 2-pole MW connection terminal for NSP-75, NSP-100CHF 0.60Available to order -
TBC-03-DG
Cover for 3-pole MW connection terminal for NSP-75, NSP-100CHF 0.60Available to order
