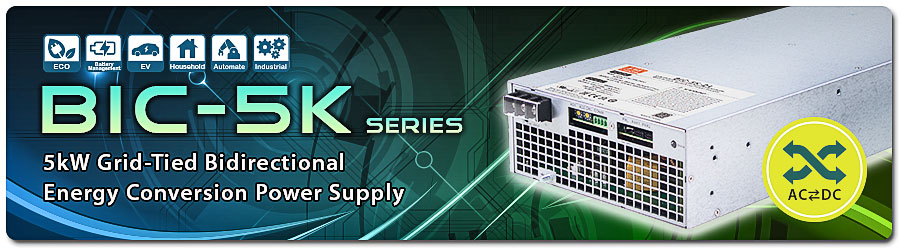

BIC-5K – bidirectional 5 kW power supply for industrial and energy storage applications

With the BIC-5K from MEAN WELL , Simpex MEAN WELL its portfolio with a bidirectional AC/DC power supply with 5 kW output power, which was developed for demanding industrial, storage, and energy recovery applications. The system enables both operation as a DC power supply (AC→DC) and the recovery of DC energy into the AC grid (DC→AC).

The fully digitally controlled power design ensures an efficiency of up to 93% in both operating directions and precise voltage and current control. The switchover time between charging and regenerative braking mode is in the millisecond range, making the BIC-5K suitable for dynamic energy management systems.

Die BIC-5K-Serie ist in mehreren DC-Spannungsvarianten verfügbar und unterstützt den Parallelbetrieb mehrerer Geräte zur Leistungssteigerung und Redundanz. Dank niedriger Netzrückwirkungen (THD < 3 %) erfüllt das Netzteil hohe Anforderungen an die Netzqualität und eignet sich für netzgekoppelte Anwendungen.

Digital communication interfaces such as CANBus and MODBus-RTU (RS-485) are available for system integration. These enable comprehensive monitoring and control of operating parameters such as voltage, current, power, and operating mode, and facilitate integration into the overall system.

For safe continuous operation, the BIC-5K has extensive protection functions, including overvoltage and undervoltage protection, overcurrent and overload protection, short-circuit protection, and overtemperature protection. The power supply complies with relevant international safety and approval standards and is designed for industrial environments.

With the BIC-5K, MEAN WELL provides MEAN WELL powerful, scalable platform for bidirectional energy flows and addresses applications such as battery charging/discharging systems, energy storage, recuperation systems, peak shaving concepts, and vehicle-to-grid applications.

Technical Highlights – MEAN WELL

• Bidirectional energy conversion: AC/DC and DC/AC in one device
• Rated power: 5 kW
• Efficiency: up to 93% in both operating directions
• Digital control: precise voltage and current control
• Fast switching: Charging ↔ regenerative braking mode in the ms range
• Network quality: low harmonics, THD < 3 %
• Scalability: Parallel operation of multiple devices for higher performance and redundancy
• DC output variants: multiple voltage options available
• Communication: CANBus, MODBus-RTU (RS-485)
• Protection functions: OVP, UVP, OCP, OLP, SCP, OTP
• Certifications: international safety and approval standards
• Applications: Energy storage, battery charging/discharging systems, recuperation, peak shaving, V2G
