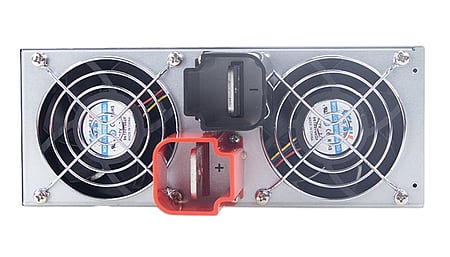

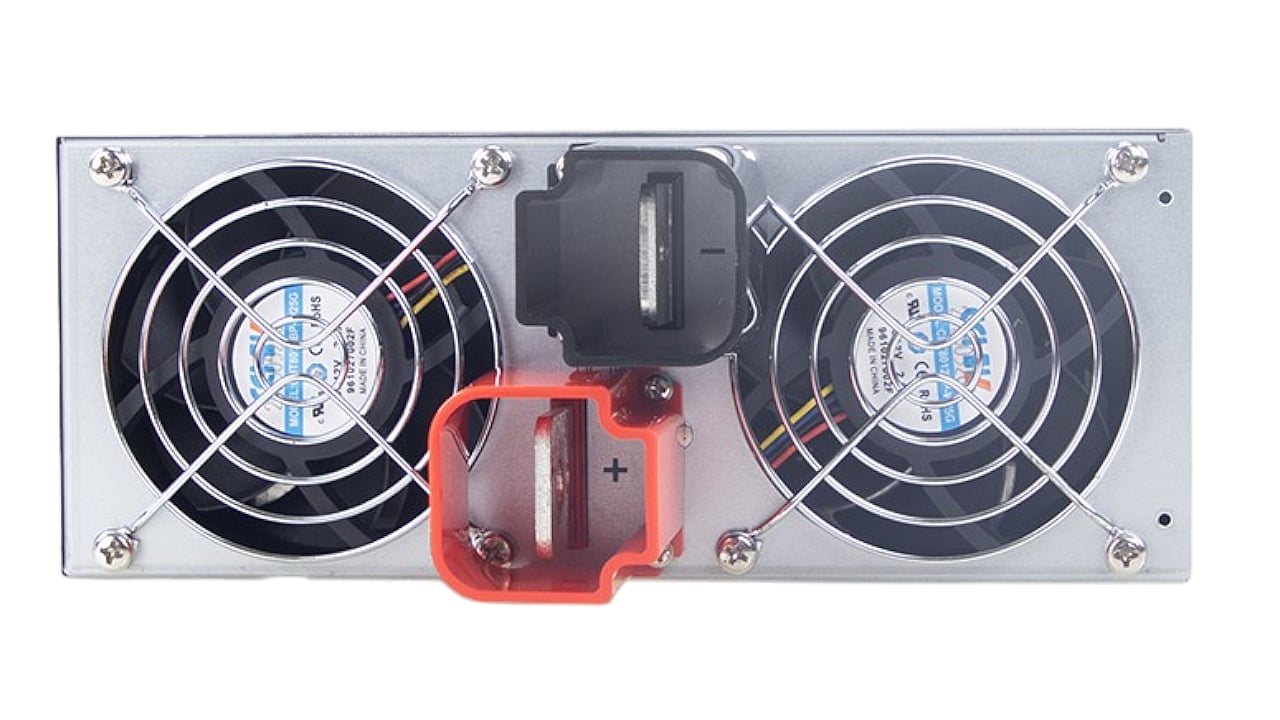

5000W bidirectional power supply 24Vdc/208A, 230Vac/22.5A, CANBus
CHF 1'511.30 excl. VAT, plus shipping costs
Description
BIS-5K can not only convert alternating current to direct current, but also, when the direct current needs to be discharged, convert the direct current energy back to the alternating current grid so that it can be used by the surrounding devices in the plant. In addition, the discharge time can be programmed to balance peaks and troughs in order to reduce electricity costs during the charging process. Using the BIC-5K can significantly increase the energy utilization rate and reduce production costs.
We use this power supply in home energy storage systems, motor recuperation, electrolysis applications, forming/grading in battery production, vehicle-to-grid applications, etc. The power supply can also be used to discharge batteries and reuse the energy.
Technical data
- Fully digital design with 93% conversion efficiency for both AC/DC and DC/AC conversion
- Ultra-fast bidirectional time of 1ms (AC/DC ↔ DC/AC)
- CB/TUV/UL 62368-1, IEC62477-1, IEC50549-1 certified,
- Supports up to 6 parallel devices with up to 30000W (5+1)
- <3% THD in both conversion modes
- Forced charge and recycle mode with CAN bus command
- Protective coating
- Complete protection functions: Anti-islanding protection, AC anomaly protection, DC OVP, OLP, OCP, OTP
- 5 year guarantee
Additional information
| Bidirectional power inverter (AC/DC DC/AC) | ||||
|---|---|---|---|---|
|
||||
| LEDs | ||||
|
||||
| UPS & Security | ||||
|
||||
| Inverter | ||||
|
||||
| More | ||||
|
||||
Data sheets
| Data sheet BIC-5K | PDF(2.77 MB) |
|---|---|
| User Manual BIC-5K | PDF(1.27 MB) |
Downloads
| 3D Step File BIC-5K | Zip file (2.92 MB) |
|---|
