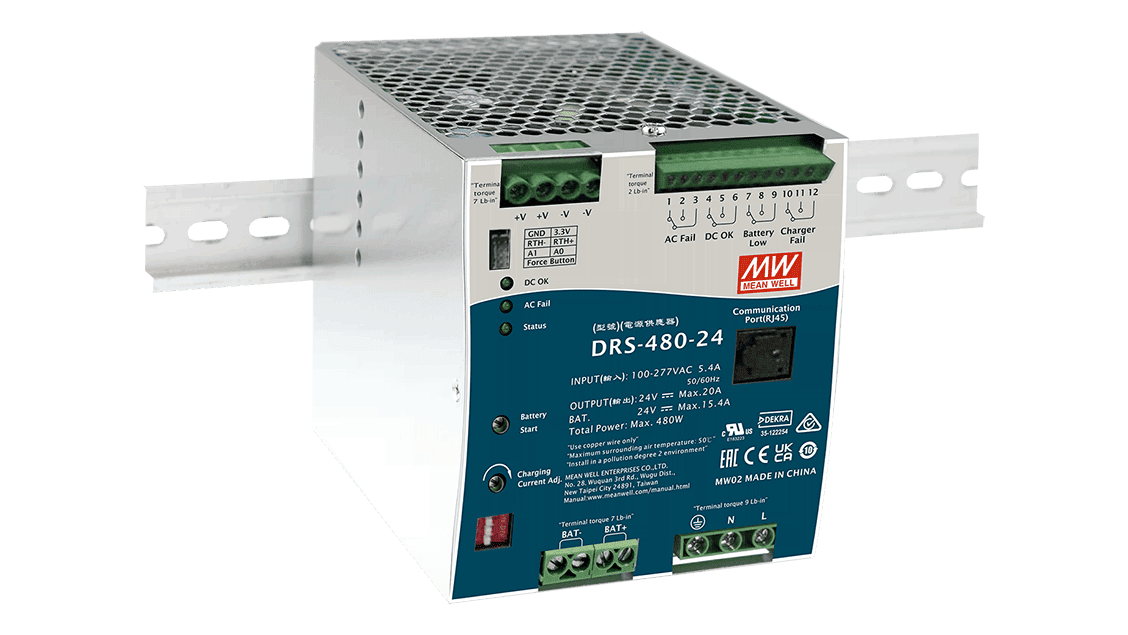

480W Intelligent DIN rail power supply with UPS function 24V/20A, CANbus
CHF 202.60 excl. VAT, plus shipping costs
Description
DRS-480-24CAN is an intelligent DIN rail power supply unit with built-in UPS function. In addition to the primary output, the power supply unit has a charging output for charging a backup battery. Depending on the load on the primary output, the intelligent charging electronics automatically provide more energy for charging the battery. Eight different charging curves can be set on the power supply unit using a DIP switch. Relay contacts for AC Fail, Charger Fail, DC OK and Battery Low are available for remote monitoring. Monitoring can also be carried out digitally using the built-in MODBus interface.
CANBus version
Programming the charging curve via Smart Battery Programmer SBP-001
Technical data
- All-in-one solution for power supply unit, DC UPS, battery charger and status monitoring
- Form C relay contacts for AC OK, DC OK, Battery Low, Charger Fail
- CANbus interface installed
- 2- or 3-stage charging characteristics adjustable with DIP switch
- Automatic load distribution between connected load and battery charging
- Programming of specific charging curve via SBP-001
Additional information
| UPS & Security | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
||||||||||||||||
| DIN rail power supplies | ||||||||||||||||
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Data sheet DRS-480 | PDF(1.8 MB) |
|---|---|
| Test Report DRS-480-24 | PDF(374.78 KB) |
| Operating instructions DRS series | PDF(983.05 KB) |
| Carbon Footprint declaration DRS-480 | PDF(74.39 KB) |
Downloads
| 3D Step File DRS-480 | Zip file (2.76 MB) |
|---|
