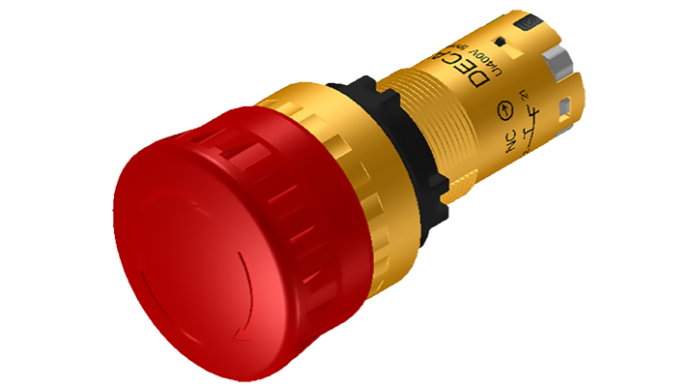

Emergency stop switch
Emergency stop switch, 1x NC contact, push-in connection
CHF 5.60 excl. VAT, plus shipping costs
Item no:
CP2E-BVE01R
In stock: Available to order
5+ CHF 5.60 CHF 5.30 (5%save)
10+ CHF 5.30 CHF 5.10 (8%save)
20+ CHF 5.10 CHF 5.00 (10%save)
Description
In critical moments, every second counts. The DECA emergency stop switch is your reliable partner for maximum safety in industrial and commercial environments. Designed to respond quickly and effectively in an emergency, this switch provides a reassuring sense of safety and control.
- 22mm version
- Protection class IP66
- With anti-rotation lock on the release button
- Tighten or loosen the fastening nut with a hand tool or finger
- PUSH-IN quick wiring
- Single contact and double wiring holes, suitable for solid wire, stranded wire and European terminal wiring
- Waterproof silicone sleeve: Provides IP66 protection for the contact under the mounting plate
Technical data
- Mechanical service life: >300,000 operations
- Electrical service life: >100,000 operations
- Operating temperature: -40°C to +70°C
- Suitable for cable diameters: AWG 16-26, 0.2 to 1.5mm2
- Contact current: 240Vac, ohmic load: 6A / inductive load: 3A
Additional information
| Emergency stop switch | ||||
|---|---|---|---|---|
|
||||
| LEDs | ||||
|
||||
| More | ||||
|
||||
Data sheets
| Specification CP2E-BVExR | PDF(538.33 KB) |
|---|---|
| Emergency switch selection guide | PDF(1.34 MB) |
