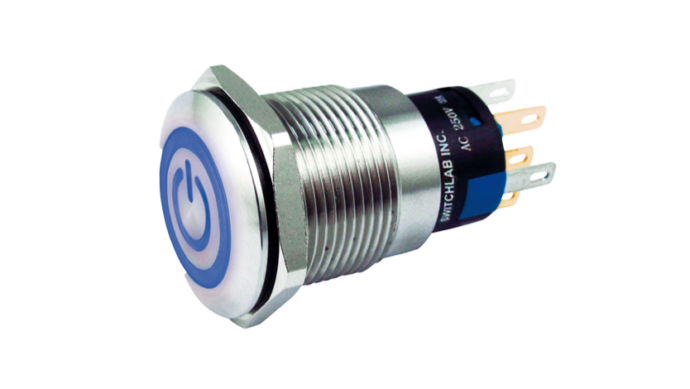

Push-button switch
Illuminated Pushbutton switch with power imprint, blue
CHF 14.50 excl. VAT, plus shipping costs
Item no:
F24S1-22G34BFS
In stock: Available to order
5+ CHF 14.50 CHF 13.80 (4%save)
10+ CHF 13.80 CHF 13.20 (8%save)
20+ CHF 13.20 CHF 12.80 (11%save)
Description
Pushbutton switch with power imprint and blue LED lighting.
Technical data
- Connection: soldered
- For installation opening: ø 19mm
- Electrical service life: >50,000 operations
- Mechanical service life: >100,000 operations
- Operating temperature: -25°C to +50°C
- Vandal-proof stainless steel housing, highly resistant to impact and destruction
- IP67 protected
- With lighting 24Vdc, blue
Additional information
| Push-button switch | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| Mains cable and accessories | ||||||
|
|
||||||
Data sheets
| Specification F24S1 | PDF(452.47 KB) |
|---|
