Open frame

150W Power supply 12V/12.5A

CHF 66.90 excl. VAT, plus shipping costs

Item no: CFM150S120-B
In stock: Available to order
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

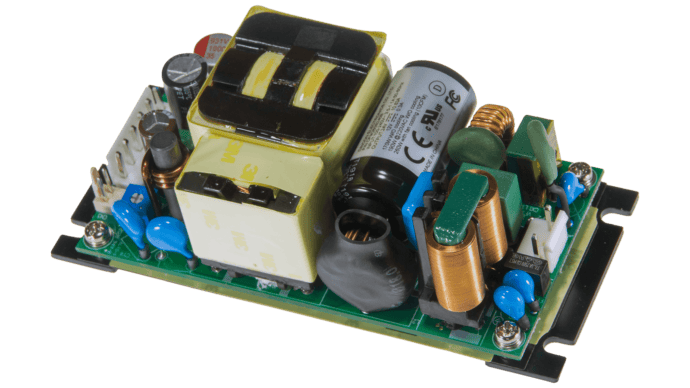

CFM150S120-B is Cincon's new high power density ITE AC/DC open frame power supply that is compatible with both Class I and Class II and offers 150W of power with baseplate cooling, measuring 116.8×50.8×34.6 mm. It has safety approvals according to IEC/UL/EN62368-1 and complies with IEC/EN60335-1.

Version with baseplate cooling

Technical data

  • Input voltage range 90 to 264Vac
  • 2 "x 4" open frame design, very compact
  • Active PFC
  • No load power consumption 150mW
  • High efficiency 94%
  • 120 watts with natural convection
  • 150 watts with base plate
  • Protective circuit: Permanent short circuit
  • Complies with IEC/EN60335-1 and IEC60601-1
  • EMI safety complies with Class I and Class II
  • Application range 5000m

Additional information

Open Frame
Output voltage (Vdc)

12

Power (W)

150

Application

Budget, ITE/AV

Protection class

Class I, Class II

Length (mm)

116.8

Width (mm)

50.8

Height (mm)

34.6

Manufacturer

Cincon
LEDs
Product series

CFM
More
Manufacturer's warranty

3 years

Convection power (W)

120

Efficiency typ.

93%

Baseplate cooling power (W)

150

Data sheets

Data sheet CFM150S PDF(761.84 KB)
Application note CFM150S PDF(815.2 KB)

Downloads

3D data CFM150S Zip file (7.6 MB)
