Open frame

150W Open frame power supply 12V/12.5A

NRND - Alternatively use article EPP-120S-12 or LOP-200-12.

CHF 37.40 excl. VAT, plus shipping costs

Item no: EPP-150-12
In stock: Available to order
Packaging ex works: 72 piece
Estimated delivery time: 1 to 2 weeks
5+ CHF 37.40 CHF 35.60 (4%save)
10+ CHF 35.60 CHF 34.10 (8%save)
20+ CHF 34.10 CHF 33.10 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

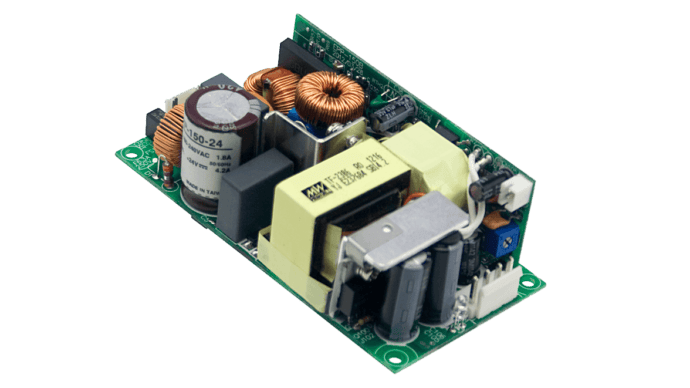

EPP-150-12 is an extremely compact open frame power supply unit on a 4″ x 2″ footprint with very high power density.

Technical data

  • Input voltage 90 to 264Vac
  • 100W convection
  • 150W with 20CFM fan
  • No load power consumption <0.5W
  • Built-in power factor correction >0.95
  • LED indicator for power-on
  • Auxiliary output 12V/0.3A
  • Short-circuit, overload, overvoltage and temperature protection
  • Dimensions 101.6 x 50.8 x 29mm (L x W x H)

Additional information

Open Frame
Output voltage (Vdc)

12

Power (W)

150

Application

ITE/AV

Standard size

2×4 inch

Protection class

Class I

Length (mm)

101.6

Width (mm)

50.8

Height (mm)

29

Further functions

12Vdc auxiliary output

Manufacturer

MEAN WELL
LEDs
Product series

EPP
More
Manufacturer's warranty

3 years

Convection power (W)

100

Efficiency typ.

91%

Data sheets

Data sheet EPP-150 PDF(278.56 KB)
Test Report EPP-150-12 PDF(214.91 KB)
Installation Manual MEAN WELL Open Frame PDF(830.11 KB)
Carbon Footprint declaration EPP-150 PDF(73.62 KB)

Downloads

3D data EPP-150 Zip file (136.16 KB)
