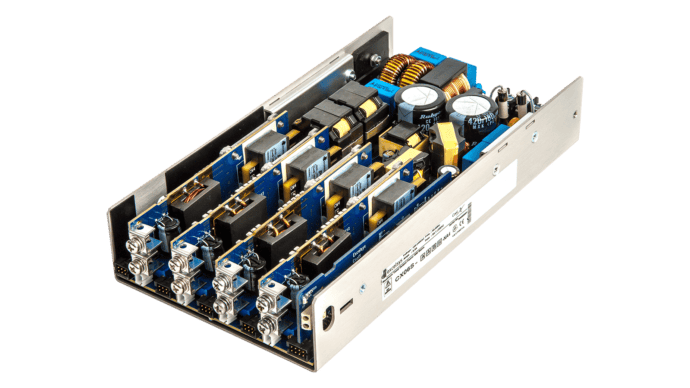

CoolX Medical Power Pac 600W 4-Slots
CHF 256.50 excl. VAT, plus shipping costs
Description
The first fanless modular power supply on the market, the revolutionary Excelsys CoolX600 series is a convection-cooled, modular power supply platform with comprehensive features and specifications. With an efficiency of 93 %, it delivers 600 W in a very compact 215.9 x 114.3 x 39.1 mm housing
CoolX600 can be equipped with four CoolMods and offers up to eight isolated DC outputs in the range from 1 to 58 V. The outputs can be connected in parallel for higher currents and in series for higher voltages (up to 232 VDC). The configuration can be carried out ex works or by the user.
Highlights
- 93% efficiency
- No fans, no noise, no vibrations
- 12V / 24W auxiliary output
- Certified up to 5000 meters altitude
- MTBF > 400,000 hours
DC modules
Single Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA | 5 | 2.5 - 6.0 | 21 | 105 |
| CMB | 12 | 6.0 - 15.0 | 15 | 180 |
| CMC | 24 | 15.0 - 28.0 | 8.3 | 200 |
| CMD | 48 | 28.0 - 58.0 | 4.2 | 200 |
High Power Module (occupy 3 slots)
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CME | 24 | 22.8 - 25.2 | 25 | 550 |
| CMF | 48 | 45.6 - 50.4 | 12.5 | 550 |
Dual Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMG V1 | 24 | 3.0 - 30.0 | 3.0 | 90 |
| V2 | 24 | 3.0 - 30.0 | 3.0 | 90 |
| CMH V1 | 5 | 3.0 - 6.0 | 6.0 | 36 |
| V2 | 24 | 3.0 - 30.0 | 3.0 | 90 |
Wide Trim Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA-W01 | 5 | 1.0 - 6.0 | 21 | 105 |
| CMB-W01 | 12 | 1.0 - 15.0 | 15 | 180 |
| CMC-W01 | 24 | 1.0 - 28.0 | 8.4 | 200 |
| CMD-W01 | 48 | 3.0 - 58.0 | 4.2 | 200 |
High-voltage module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMK | 200 | 175 - 205 | 0.6 | 132 |
Additional information
| Modular power supplies | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Data sheet CoolX600 | PDF(1.68 MB) |
|---|---|
| PMBus Manual | PDF(435.21 KB) |
| CoolX600 Designers Manual | PDF(1.06 MB) |
Downloads
| CoolX PMBus GUI | Zip file (282.06 KB) |
|---|
Accessories
-
CMB
CoolX DC module CX06,CX10:12V/15A; CX18:12V/23.3ACHF 121.4010 Available immediately -
CME
CoolX DC module CX06,CX10:24V/25A; CX18:24V/37.5ACHF 214.8010 Available immediately -
CMC
CoolX DC module CX06,CX10:24V/8.33A; CX18:24V/12.5ACHF 121.4021 Available immediately -
CMF
CoolX DC module CX06,CX10:48V/12.5A; CX18:48V/18.75ACHF 214.8010 Available immediately -
CMD
CoolX DC module CX06,CX10:48V/4.17A; CX18:48V/6.25ACHF 121.4017 Available immediately -
CMA
CoolX DC module CX06,CX10:5V/21A; CX18:5V/30ACHF 121.4015 Available immediately -
Z000837
CoolX600 Parallel LinksCHF 2.0069 Available immediately -
Z000836
CoolX600 Series LinksCHF 2.0099 Available immediately -
CMG
Dual DC module CX06,CX10:+/- 24.0V/120W; CX18:+/-24V/200WCHF 132.908 Available immediately -
CMH
Dual DC module CX06,CX10:5V/36W, 24V/90W; CX18:5V/60W, 24V/120WCHF 132.9010 Available immediately -
CMB-W01
Wide Trim DC module CX06,CX10:12V/180W; CX18:12V/280WCHF 141.1014 Available immediately -
CMC-W01
Wide Trim DC module CX06,CX10:24V/200W; CX18:24V/300WCHF 141.1010 Available immediately -
CMD-W01
Wide Trim DC module CX06,CX10:48V/200W; CX18:48V/300WCHF 141.10Available to order -
CMA-W01
Wide Trim DC module CX06,CX10:5V/105W; CX18:5V/150WCHF 141.1015 Available immediately
