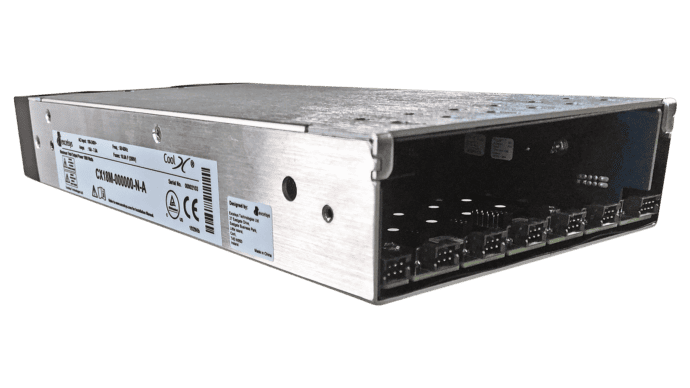

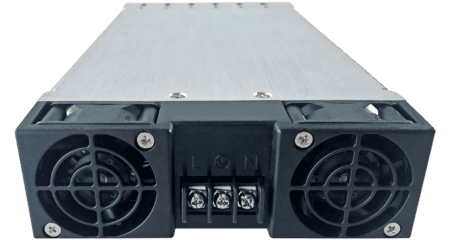

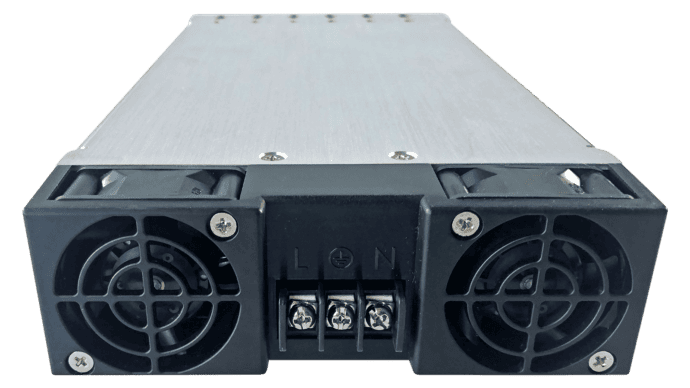

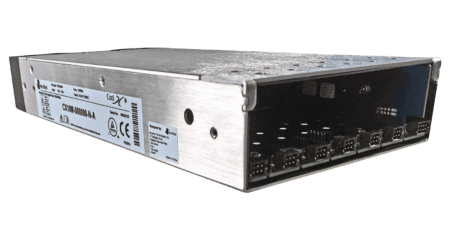

CoolX Power Pac 1800W 6-Slots
CHF 403.10 excl. VAT, plus shipping costs
Description
CX18S from Excelsys is a new, intelligent, modular power supply series with ITE/AV approval for up to 1800 watts output power.
CoolX1800 can be equipped with six CoolMods and offers up to 12 isolated DC outputs in the range from 1 to 58 V. The outputs can be connected in parallel for higher currents and in series for higher voltages (up to 232 VDC). The configuration can be made ex works or by the user.
Highlights
- 91% efficiency
- All outputs isolated (1850Vac)
- 12V / 24W auxiliary output
- Certified up to 5000 meters altitude
- MTBF > 200,000 hours
DC modules
Single Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA | 5 | 2.5 - 6.0 | 30 | 150 |
| CMB | 12 | 6.0 - 15.0 | 23.3 | 280 |
| CMC | 24 | 15.0 - 28.0 | 12.5 | 300 |
| CMD | 48 | 28.0 - 58.0 | 6.25 | 300 |
High Power Module (occupy 3 slots)
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CME | 24 | 22.8 - 25.2 | 37.5 | 900 |
| CMF | 48 | 45.6 - 50.4 | 18.75 | 900 |
Dual Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMG V1 | 24 | 3.0 - 30.0 | 4.0 | 120 |
| V2 | 24 | 3.0 - 30.0 | 4.0 | 120 |
| CMH V1 | 5 | 3.0 - 6.0 | 10.0 | 60 |
| V2 | 24 | 3.0 - 30.0 | 4.0 | 120 |
Wide Trim Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA-W01 | 5 | 1.0 - 6.0 | 30 | 150 |
| CMB-W01 | 12 | 1.0 - 15.0 | 23.3 | 280 |
| CMC-W01 | 24 | 1.0 - 28.0 | 12.5 | 300 |
| CMD-W01 | 48 | 3.0 - 58.0 | 6.25 | 300 |
High-voltage module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMK | 200 | 175 - 205 | 1.0 | 200 |
Additional information
| Modular power supplies | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| Maintenance aids | ||||||||||||||||
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
Data sheets
| Data sheet CoolX1800 | PDF(2.57 MB) |
|---|---|
| Designers Manual CoolX1800 | PDF(2.46 MB) |
Downloads
| CoolX PMBus GUI | Zip file (282.06 KB) |
|---|
Accessories
-
CMB
CoolX DC module CX06,CX10:12V/15A; CX18:12V/23.3ACHF 139.6010 Available immediately -
CME
CoolX DC module CX06,CX10:24V/25A; CX18:24V/37.5ACHF 247.1010 Available immediately -
CMC
CoolX DC module CX06,CX10:24V/8.33A; CX18:24V/12.5ACHF 139.7021 Available immediately -
CMF
CoolX DC module CX06,CX10:48V/12.5A; CX18:48V/18.75ACHF 247.2010 Available immediately -
CMD
CoolX DC module CX06,CX10:48V/4.17A; CX18:48V/6.25ACHF 139.6017 Available immediately -
CMA
CoolX DC module CX06,CX10:5V/21A; CX18:5V/30ACHF 139.6015 Available immediately -
CMG
Dual DC module CX06,CX10:+/- 24.0V/120W; CX18:+/-24V/200WCHF 152.908 Available immediately -
CMH
Dual DC module CX06,CX10:5V/36W, 24V/90W; CX18:5V/60W, 24V/120WCHF 152.9010 Available immediately -
CMB-W01
Wide Trim DC module CX06,CX10:12V/180W; CX18:12V/280WCHF 162.3014 Available immediately -
CMC-W01
Wide Trim DC module CX06,CX10:24V/200W; CX18:24V/300WCHF 162.30Available to order -
CMD-W01
Wide Trim DC module CX06,CX10:48V/200W; CX18:48V/300WCHF 162.30Available to order -
CMA-W01
Wide Trim DC module CX06,CX10:5V/105W; CX18:5V/150WCHF 162.3015 Available immediately
Similar products
-
CX10S-000000-N-A
CoolX Power Pac 1000W 6-SlotsCHF 444.705 Available immediately -
CX18M-000000-N-A
CoolX Medical Power Pac 1800W 6-SlotsCHF 529.608 Available immediately
