Modular power supplies

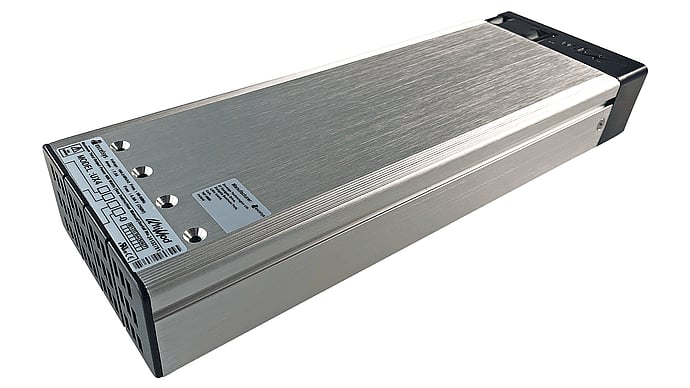

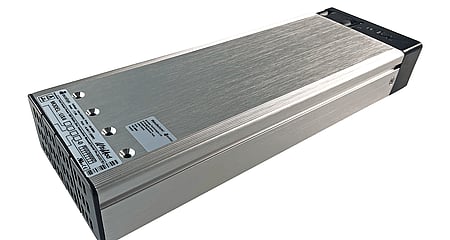

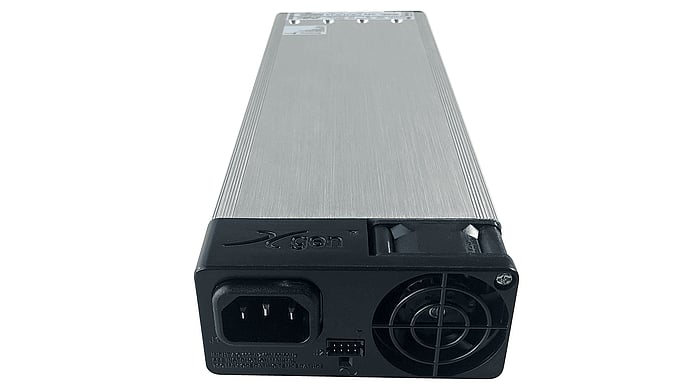

UltiMod Power Pac 600W 4-Slots
CHF 237.10 excl. VAT, plus shipping costs
Item no:
UX4
In stock: Available to order
5+ CHF 237.10 CHF 225.30 (4%save)
Description
The UltiMod series from Advanced Energy combines technical excellence with logistical simplicity to exceed the most demanding requirements.
The UX4 delivers up to 600 W and can be equipped with up to four PowerMods. This allows flexible configuration of up to 8 independent output voltages.
Highlights
- up to 92% efficiency
- Low noise fan
- Dual certification for medical and industrial applications
- Field-configurable and extremely flexible
DC modules
Single Output Module
| Module | Vdc Nominal | Setting range | Trim range | Imax (A) | Performance |
| XgA | 12.0 | 10.8...15.6 | - | 12.5 | 150 |
| XgB | 24.0 | 19.2...26.4 | - | 8.3 | 200 |
| XgC | 36.0 | 28.8...39.6 | - | 5.6 | 200 |
| XgD | 48.0 | 38.5...50.4 | - | 4.2 | 200 |
| XgG | 2.5 | 1.5...3.6 | 1.15...3.6 | 40.0 | 100 |
| XgH | 5.0 | 3.2...6.0 | 1.5...6.0 | 36.0 | 180 |
| XgJ | 12.0 | 6.0...15.0 | 4.0...15.0 | 18.3 | 220 |
| XgK | 24.0 | 12.0...30.0 | 8.0...30.0 | 9.2 | 220 |
| XgL | 48.0 | 28.0...58.0 | 8.0...58.0 | 5.0 | 240 |
| Xg1 | 2.5 | 1.5...3.6 | 1.15...3.6 | 50.0 | 125 |
| Xg2 | 5.0 | 3.2...6.0 | 1.5...6.0 | 40.0 | 200 |
| Xg3 | 12.0 | 6.0...15.0 | 4.0...15.0 | 20.0 | 240 |
| Xg4 | 24.0 | 12.0...30.0 | 8.0...30.0 | 10.0 | 240 |
| Xg5 | 48.0 | 28.0...58.0 | 8.0...58.0 | 6.0 | 288 |
Dual output module
| Module | Channel | Vdc Nominal | Setting range | Imax (A) | Performance |
| XgF | V1 | 24.0 | 5.0...28.0 | 3.0 | 72 |
| V2 | 24.0 | 5.0...28.0 | 3.0 | 72 |
Technical data
- IEC62368-1 2nd
- UL/EN60601-1 3rd edition (2xMOPP level)
- Efficiency of up to 92
- Configurable by user and in the field
- Leakage current 4KV Insulation
- Low noise level due to low-noise fan
- Start-up temperature -40°C
- Shock: >60G's
- Vibration: MIL STD-810G
- No minimum load
- 4 slots for PowerMods
- Up to 8 potential-free outputs
- 5V stand-by output
- 5 year guarantee
- Manufacturer Excelsys
Additional information
| Modular power supplies | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Ultimod data sheet | PDF(1.02 MB) |
|---|---|
| Designers Manual Ultimod | PDF(1.43 MB) |
