40W LED driver CV+CC 12V/3.33A, 3in1 dimming + Vo/Io adjustable on driver

Name: HLG-40H-12AB - MEAN WELL - 40W LED driver CV+CC 12V/3.33A, 3in1 dimming + Vo/Io adjustable on the driver
Brand: MEAN WELL
SKU: HLG-40H-12AB
Price: 58.40 CHF
Availability: InStock

CHF 58.40 excl. VAT, plus shipping costs

Item no: HLG-40H-12AB

In stock: Available to order

Packaging ex works: 20 piece

Recommend:

Delivery time request Print PDF

Description

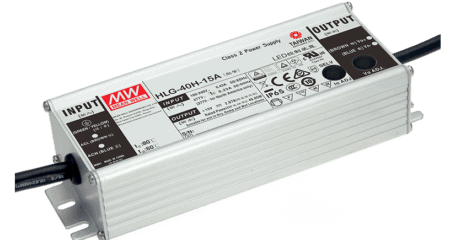

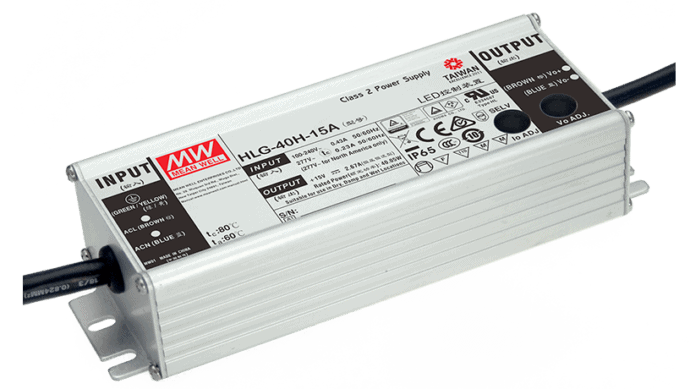

HLG-40H-12AB is a robust, dimmable 40W AC/DC LED converter with a very long service life and high efficiency. Fully encapsulated and installed in a metal housing, the LED driver is IP65 protected and therefore suitable for indoor and outdoor applications.

The new "AB" version of the HLG-240H is a combination of the previous "A" and "B" series. The power supply unit has a built-in 3in1 dimming interface and an additional current and voltage control option on the device. This allows the output voltage to be increased to compensate for voltage loss over long cables.

Technical data

Can be used as a constant voltage and constant current source
Current and voltage adjustable on the driver
Built-in 3in1 dimming function (1-10Vdc, PWM, resistor)
IP65 design, splash-proof
Very robust design with a long service life
Surge-proof up to 4kV (IEC61000-4-5)
Fully encapsulated in aluminum housing
Operating temperature range from -40°C to +70°C
Dimensions 171 x 61.5 x 36.8mm (L x W x H)

Additional information

LED constant voltage

Output voltage (Vdc)	12
Power (W)	40
Control	1-10V, resistor, PWM control
Dimming type	Current control
Channels	1
Application	Single Color
Product series	HLG
Output current (A)	3.33
Input voltage range (Vac)	100 to 277
Length (mm)	171
Width (mm)	61.5
Height (mm)	36.8
IP protection	IP65
Connection	Cables
Further functions	Voltage setting on the device, current setting on the device
Manufacturer	MEAN WELL

LEDs

Manufacturer's warranty	7 years
Efficiency typ.	86%

Data sheets

Data sheet HLG-40H series	PDF(833.52 KB)
Test Report HLG-40H-12	PDF(183.97 KB)
Installation instructions LED driver	PDF(1.2 MB)

Downloads

3D data HLG-40H	Zip file (85.55 KB)
