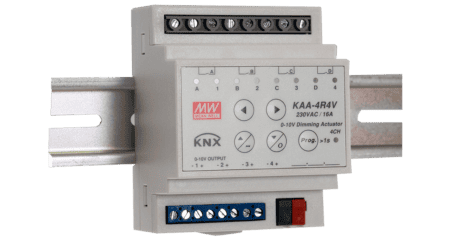

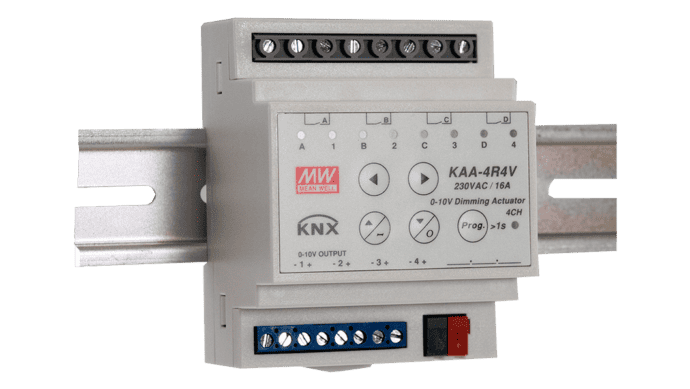

4 channel KNX dimming actuator 0-10V / 1-10V, 10A per channel, with KNX Secure
CHF 156.40 excl. VAT, plus shipping costs
Description
The KAA-4R4V KNX LED dimming actuator has four switching channels with mutually independent, high quality holding relays and 4 dimming outputs which can be configured as 0-10V or 1-10V dimmers.
With this functionality, LED converters such as the HLG and ELG series from MEAN WELL and control and switch conventional ballast.
With KNX Secure, the actuator can be effectively protected against unauthorized access and manipulation through encryption and authentication.
Technical data
- Dimming and switching of LED drivers and conventional ballasts with 0-10V or 1-10V interface
- Manual control with buttons on the device
- KNX Secure
- Functions: Staircase lighting, dimming, switching, on/off delay, linear or logarithmic dimming curve, scenes
- 10A per channel
- Dimensions (W x H x D): 105 (6TE) x 90 x 54.5 mm
- 3-year guarantee
Additional information
| KNX actuators | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
||||||||
| More | ||||||||
|
||||||||
Data sheets
| Data sheet KAA-4R4V-S | PDF(779.32 KB) |
|---|---|
| Manual KAA-4R4V-S | PDF(3.6 MB) |
| Application Database | PDF(650.61 KB) |
Downloads
| 3D Step File KAA-4R4V | Zip file (1.04 MB) |
|---|
Accessories
-
KNX-40E-1280
KNX power supply unit 30V/1280mACHF 121.907 Available immediately -
KNX-40E-1280D
KNX power supply unit 30V/1280mA with diagnostic functionCHF 195.5021 Available immediately -
KNX-20E-640
KNX power supply unit 30V/640mACHF 92.00455 Available immediately -
KSI-01U
KNX USB interfaceCHF 157.501 Available immediately -
ESB001.LED.230VAC
Inrush current limiter (DIN rail version), 43A, ultra-compactCHF 65.7035 Available immediately -
ICL-16R
Inrush current limiter (DIN rail version), 23ACHF 42.2096 Available immediately -
DIN rail perforated TS35/7.5
DIN rail perforated TS35/7.5CHF 1.90 - CHF 2.50Select version This product has several variants. The options can be selected on the product page
