KNX system devices
KNX power supply unit 30V/1280mA
CHF 121.90 excl. VAT, plus shipping costs
Item no:
KNX-40E-1280
Stock level:7 Available immediately
Packaging ex works:
48 piece
Description

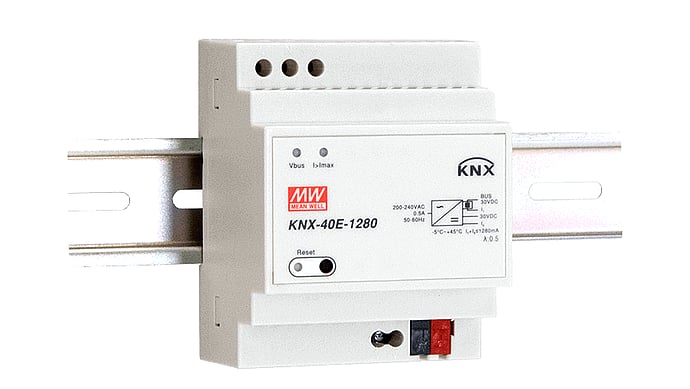

KNX-40E-1280 is a 1280mA KNX power supply with high efficiency. The compact design requires only 4 TE (72mm) in the installation and is therefore one of the most compact KNX power supply units on the market. The device has a KNX bus voltage output and an additional auxiliary output.
Technical data
- EIB/KNX power supply unit
- Compact width 4TE (72mm)
- Input voltage: 180 to 264 VAC
- Suitable for TP1-256 installations
- 200 ms power failure bridging
- Bus reset button
- Efficiency up to 86 %
- Working temperature range: -30 to + 70 °C
- Integrated protective devices: Short circuit / overload (short-circuit proof) / overvoltage
- Cooling through free air convection
- Approvals: KNX/DEKRA
- CE marking of the manufacturer
- LED display for normal operation, bus reset and bus overload
- Suitable for installation on DIN rail TS-35 / 7.5 or 15
- Dimensions (L x W x H): 72 x 90 x 57 mm
- 3-year manufacturer's warranty
Additional information
| KNX system devices | ||
|---|---|---|
|
||
| LEDs | ||
|
||
Data sheets
| Data sheet KNX-40E-1280 | PDF(847.22 KB) |
|---|
Downloads
| 3D Drawing KNX-40E-1280 | Zip file (1.07 MB) |
|---|
Accessories
-
PWM-60-24KN
60W LED driver with PWM output 24V/2.5A, KNXCHF 83.705 Available immediately -
DIN rail perforated TS35/7.5
DIN rail perforated TS35/7.5CHF 1.90 - CHF 2.50Select version This product has several variants. The options can be selected on the product page -
KAA-8R-10S
8-channel universal KNX switching actuator, 10A per channel, with KNX SecureCHF 151.8046 Available immediately
Similar products
-

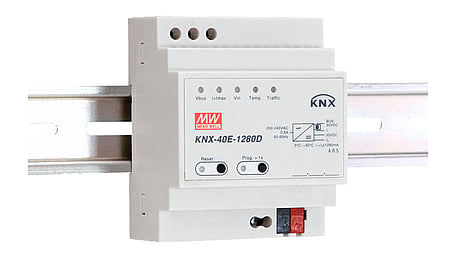

KNX-40E-1280D
