185W LED driver CV+CC 24V/7.8A, 3in1 dimming + Vo/Io adjustable on driver

Name: HLG-185H-24AB - MEAN WELL - 185W LED driver CV+CC 24V/7.8A, 3in1 dimming + Vo/Io adjustable on the driver
Brand: MEAN WELL
SKU: HLG-185H-24AB
Price: 98.40 CHF
Availability: InStock

CHF 98.40 excl. VAT, plus shipping costs

Item no: HLG-185H-24AB

Stock level:4 Available immediately

Packaging ex works: 12 piece

Recommend:

Delivery time request Print PDF

Description

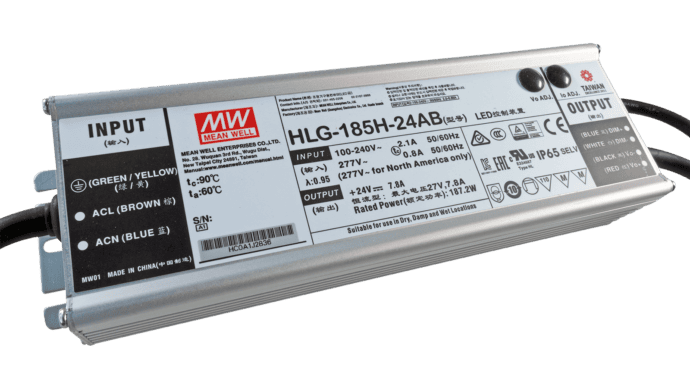

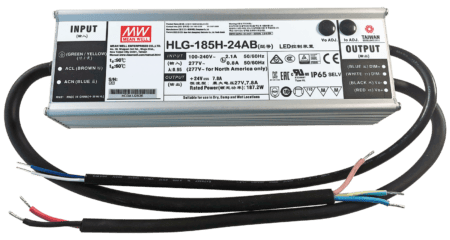

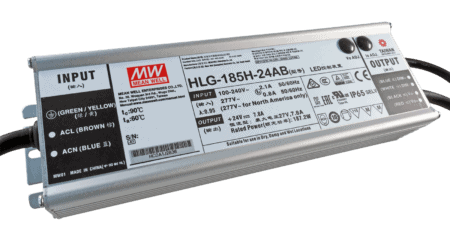

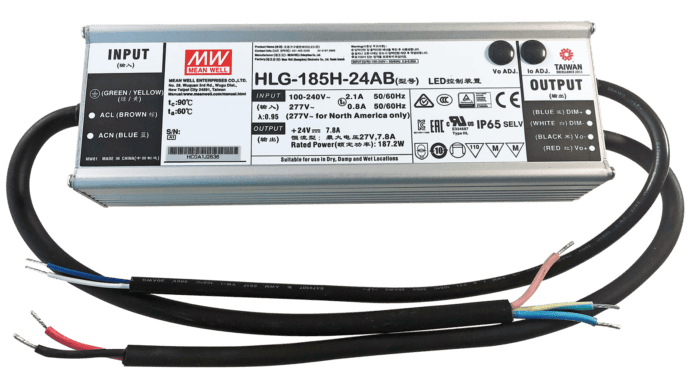

HLG-185H-24AB is a robust, dimmable 185W AC/DC LED converter with a very long service life and high efficiency. Fully encapsulated and installed in a metal housing, the LED driver is IP65 protected and therefore ideal for indoor and outdoor applications.

The new "AB" version of the HLG series is a combination of the previous "A" and "B" series. The power supply unit has a built-in 3in1 dimming interface and an additional current and voltage control option on the device. This allows the output voltage to be increased to compensate for voltage loss over long cables.

Control

1-10V signal (10V=100% Iout, 1V=10% Iout)
Resistance (100kΩ=100% Iout, 10kΩ =10% Iout)
10V PWM signal (100% duty cycle=100% Iout, 10% duty cycle=10% Iout)

Dimming range

The dimming range is 10% to 100% in relation to the nominal power. For a good dimming result, we recommend utilizing the LED driver with at least 90%.

Technical data

Can be used as a constant voltage and constant current source
Current and voltage adjustable on the driver
Built-in 3in1 dimming function (1-10Vdc, PWM, resistor)
IP65 design, splash-proof
Very robust design with a long service life
Surge-proof up to 4kV (IEC61000-4-5)
Fully encapsulated in aluminum housing
Operating temperature range from -40°C to +70°C
Dimensions 228 x 68 x 38.8mm (L x W x H)

Additional information

LED constant voltage

Output voltage (Vdc)	24
Power (W)	185
Control	1-10V, resistor, PWM control
Dimming type	Current control
Channels	1
Application	Single Color
Product series	HLG
Output current (A)	7.8
Input voltage range (Vac)	100 to 277
Length (mm)	228
Width (mm)	68
Height (mm)	38.8
IP protection	IP65
Connection	Cables
Further functions	Voltage setting on the device, current setting on the device
Manufacturer	MEAN WELL

LEDs

Manufacturer's warranty	7 years
Efficiency typ.	93%

Data sheets

Data sheet HLG-185H series	PDF(838.38 KB)
Test Report HLG-185H-24	PDF(160.06 KB)
Installation instructions Mean Well LED converter	PDF(1.2 MB)
Carbon Footprint declaration HLG-185H-AB	PDF(73.99 KB)

Downloads

3D data HLG-185H	Zip file (355.04 KB)
